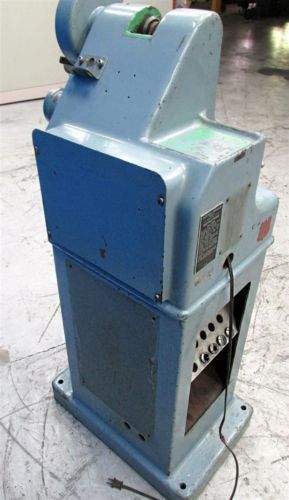

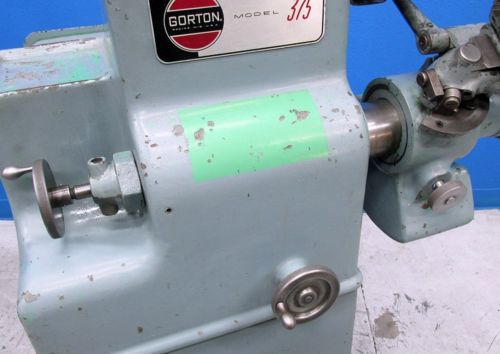

GORTON UNIVERSAL TOOL & CUTTER GRINDER #375-4 W/ 5 COLLETS, US $3300 – Picture 0

GORTON UNIVERSAL TOOL & CUTTER GRINDER #375-4 W/ 5 COLLETS, US $3300 – Picture 1

GORTON UNIVERSAL TOOL & CUTTER GRINDER #375-4 W/ 5 COLLETS, US $3300 – Picture 2

GORTON UNIVERSAL TOOL & CUTTER GRINDER #375-4 W/ 5 COLLETS, US $3300 – Picture 3

GORTON UNIVERSAL TOOL & CUTTER GRINDER #375-4 W/ 5 COLLETS, US $3300 – Picture 4

Gorton Universal Tool & Cutter Grinder #375-4 W/ 5 Collets

US $3300

La Puente, California, United States
Jan 30th

Open on mobile:
QR code

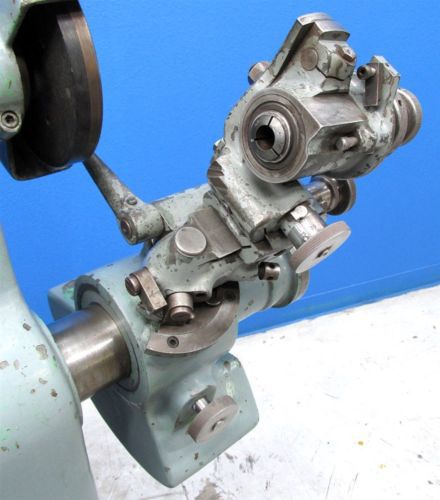

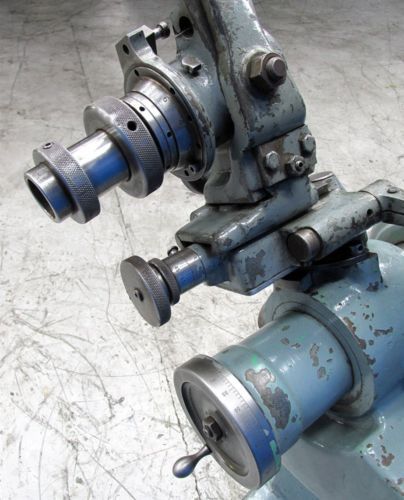

Call Us Today! 626.330.4647|info@1machinerysales.com GORTON UNIVERSAL TOOL & CUTTER GRINDER #375-4 W/ 5 COLLETS Made in the U.S.A. by the George Gorton Machine Company of Racine, Wisconsin. This is a Universal Tool & Cutter Grinder in working condition. Model #: 375-4 The Gorton line is now handled by Famco. Features: Here is some information off the website: FAMCO/LARS MODEL 375 UNIVERSAL CUTTER GRINDER For grinding single and multi-straight flute cutters, and sharpening multi-fluted helical cutters of standard length - either H.S.S. or carbide, up to 1" dia. shank (maximum collet capacity - 5/8", special sleeves to 1"). The Tool Head is of Multi-Slide Design with micrometer positioning, angular positioning of spindle carrier, collet clamping of sliding sleeve, #4NS collet draw bar, swing-away centering finger and swiveling mount with lock. The Tool Head Spindle Rotates on precision bearings for accurate O.D. or relief grinding. Sliding sleeve facilitates rapid positioning and draw grinding of multi-flute cutters. An Index Dial with Pin facilitates grinding straight-fluted cutters with 1, 2, 3, 4 or 6 flutes. A removable tooth rest provides for sharpening of multi-fluted cutters. An adjustable angle gage positions cutter in tool head, and a positive stop provides for consistent relief grinding to cutting edge. The Tool Head Support is of sliding sleeve design with ball bearing counterbalanced base, hardened taper stud for attaching tool head, graduated ring with adjustable stops for tool heading setting, shielded and lubricated from central oil reservoir, and is arranged with right and left hand feed handwheel for operator convenience. Can be clamped in any position. The Wheel Spindle is of cartridge design, easily removed as a unit, with grease-packed super-precision bearings. Spindle Nose is Tapered and accommodates wheel adapters for 6" dia. wheels (abrasive and diamond) with 7/8" dia. holes. Completely covered wheel guard incorporating latest safety standards and diamond dresser on guard. Spindle drive is by V-belt from 1/4 H.P. dynamically balanced motor mounted on vibrationless rubber mounts. Stepped Pulley Drive provides two spindle speed changes for high speed steel and carbide cutter grinding. Motor, drive and spindle enclosed in housing - accessible by removing cover. Simple positive adjustments are provided at all vital points. The Machine Housing is of rugged cast design with built-in tool tray. Specifications: Grinding Capacities: Straight-Fluted Cutters: 1, 2, 3, 4 or 6 flutes Flute Cutters: up to 1" Solid Sleeves: up to 1" Spindles: Spindle Speeds: 1,440 rpm minimum & 3,230 rpm maximum Maximum Wheel Diameter: 6" Maximum Collet Diameter: 5/8" Collets: Round: 11/16", 1/2", 3/32", 3/16", 5/8" General: Motor: 1/3 Horsepower, 115 Volt, 1725 rpm, 3.7 Amp, 60 Hz, Single Phase Electrical: 115 Volt, Single Phase Overall Dimensions: 32" x 25" x 50" tall. Comes as shown in pictures. Weigth: 550 lbs. Copyright 2014 1 Machinery Sales.com | All Rights Reserved Policies DESCRIPTIONS Please read descriptions carefully, we list any features, specifications and details we know and/or research. When possible we test the basic features If you don’t see the information you need or notice any discrepancies; Contact Us! We are here to answer all your questions regarding our eBay Listings and our eBay Store. Don't assume items come with any accessories not shown in pictures. All items come as shown in pictures. PAYMENTS We accept Visa, MasterCard and Discover via PayPal. Payments are expected within 3 days after the close of the auction. An eBay Non-Paying Bidder Notification will be filed if payment has not been received. After 10 business days of non-payment item will be relisted and no payment from previous transaction will be accepted. Sales Tax is calculated on the final auction cost plus shipping charges and must be paid prior to shipment. STORAGE We offer storage services from small items to full containers. We also offer container loading, Contact us for prices. For buyers bidding on, or buying multiple items, we will hold them for up to 7 days at no charge, after 7 days fees may apply. Contact us when you are planning to bid on multiple items across multiple days. We offer two kinds of storage fees: Inside: $ 2.50 per sq. foot Outside: $ 2.00 per sq. foot FEEDBACK Positive feedback will be left after payment has been received. If after receiving your item, you have concerns, questions or the item is not what you expected please Contact Us! We want to make your transaction a pleasant experience. Don’t leave Negative or Neutral feedback before doing it. We are professionals and we are here to help you. RETURNS We accept returns for all our items listed as working. Items listed in “AS IS” condition or “For Parts or Repair” have no warranty, read our descriptions carefully. We give 14 days to Contact Us and return the item. Refund can be process in the form of exchange, merchandise, store credit or money back. Buyer is responsible to ship the item back to us; we will be responsible to ship the exchange back. Any modifications made to the item not authorized by 1 Machinery Sales, will void any warranty. SHIPPING For combined shipping items should meet the following criteria: Combined items should fit in any of the flat Rate Boxes offered by USPS. All items must be paid at same time for the same invoice. All items should be shipped to the same address. Carriers: USPS flat Rate, FedEx Ground & UPS Ground. For International: USPS Priority Intl. Please note UPS & Fedex charge extra for residential delivery. Please call us before 1PM PST if you need expedited services *Additional cost will apply* HANDLING FEES Fees will apply as follow: Weight Charges 1 to 6 lbs. $ 3.50 7 to 20 lbs. $ 4.50 21 to 35 lbs. $ 7.00 36 to 80 lbs. $ 9.00 Handling fees are subject to change if item(s) are oversized. LOCAL PICK UP Please call to schedule a time & day for pick up. When picking up have your paperwork ready (eBay Invoice and eBay ID) and a valid ID ready. For inspection please call ahead. We are located at: 14911 Don Julian Rd. City of Injdustry, California, 91746 Phone number 626.330.4647 Monday to Friday from 10:00 am to 2:00 pm, please wait in the front office a person will be asigned to you. Payment must be cleared before picking up your item. Liability Please understand that managing tools and machinery can be dangerous, our items weight can go from a couple of pounds to hundreds or even thousands. For this reason we have to limit local pick-ups to the use of forklift on items heavier than 100 lbs. If our customers bring help along to load their items, customer will have to sign a General Form of Release of Liability or bring their own insurance. Please note that a $25.00 loading fee will apply if Forklift Services required. Unless stated in the listing above. FREIGHT Freight charges on the invoice will be from FedEx Freight. If you do not wish to use FedEx Freight services please contact us at info@1machinerysales.com. For Nevada, Arizona and California we use LA Machinery Moving, click here for an online quote or call us 626.330.4647 Items that require a standard 4’x4’ pallet will have a $25.00 fee. Please call for pricing on items that require custom skid or custom crating. We encourage our customers to arrange their own shipping on items that cannot be shipped through FedEx ground (items over 150 Lbs.) A $25.00 Loading fee will apply unless stated in the listing. If you're arranging your own freight please have a completed bill of lading to info@1machinerysales.com before sending a truck. ITEMS OVER $15,000.00 Prior to placing a bid of $15,000.00 or more buyer requires verification of payment status which could be credit card or any other alternative means. Click here for more information. CLAIMS In the event that your item gets damaged during shipment please following the steps below. Damaged packages. 1) Keep all original packing together as the carrier may require it to process the claim. 2) Take clear photos of the box & item showing the damage. 3) Send all photos to us via eBay messages & provide a short description on what is broken. Damaged pallets. If your shipment shows visible signs of damage, immediately ask the driver to inspect the contents with you. Then write a precise description of the damage on both your copy and the driver’s copy of the delivery receipt. 1) Keep all original packing together as the carrier may require it to process the claim. 2) Take clear photos of the pallet/item before offloading. 3) Send all photos to us via eBay messages & provide a short description on what is broken. Once all that information is received we will contact the carrier and submit a claim. *Freight claims only apply if 1MachinerySales arranged the freight* Due to the investigation process It may take up to 10 business days to process a claim. Click Here. Double your traffic. Get Vendio Gallery - Now FREE! On Dec-25-14 at 10:54:49 PST, seller added the following information: FREE! Sellers: Add a FREE map to your listings. FREE!

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Gorton
Model	375-4
