Fpt Dino 5-axis Cnc Double Column Machining Center, 2004

US $525,000.00

  • Watertown, Connecticut, United States
  • Mar 9th

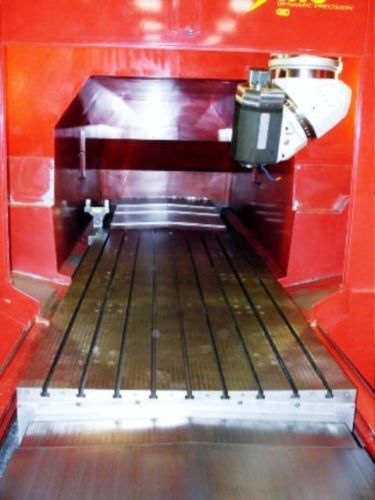

Item# 4170 - FPT Dino 5-Axis CNC Double Column Machining Center, 2004 Equipped With: Heidenhain HE-530 SP 5-Axis CNC Control Tulce TVS-10 2-Axis Direct Drive Programmable Swivel Head 30 Station Automatic Tool Changer Chip Conveyor High Pressure Coolant Full Guarding Enclosure   Machine Specifications: Manufacturer: FTP Dino Model: DINO Evolution Year: 2004 Condition: Excellent   X-Axis Travel 110.23" Y-Axis Travel 86.60" Z-Axis (Ram Storke) 39.40" Distance Between Columns 65" Height Under Cross Rail 37.40" Height of Table Surface to Floor 29.7" A & B Axes Head Swivel Continuous Motion C-Axis Head Rotation +/-9999 Deg. Continuous Table Size 118" x 47.2" Table Work Weight Capacity 17,630 lbs. Spindle Speeds 18,000 RPM Spindle Taper HSK 63A Spindle Drive Motor 59 HP Feeds 0-1378 IPM Acceleration 1312 IPM Tool Changer 30 ATC Max. Diameter Approx. 2.755" Max. Length 11.81" Max. Weight of Tool 22 lbs. Dimensions 433"L x 158"W x 181"H Approx. Weight 91,050 lbs.   Shipping Point: PA Price: $ 525,000.00 SPECIFICATIONS SUBJECT TO VERIFICATION** Rigging and Hauling NOT Included Call On Target with all your equipment questions-203-441-4655 kevinb@ontargetmachines.com
