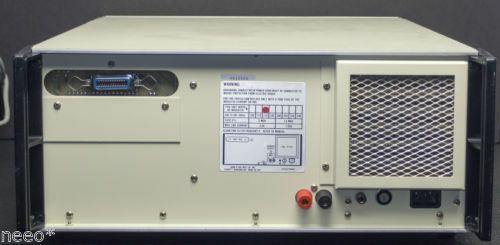

Fluke 5220a Transconductance Amplifier Up To 20a Output, Working

US $1,500.00

  • East Providence, Rhode Island, United States
  • Feb 27th
FLUKE 5220A Transconductance Amplifier 20A The Fluke 5220A Transconductance Amplifier produces current up to 20A in direct proportion to the voltage input. In other words, an input voltage of up to 20 volts produces a known output current of up to 20A.  The 5220A is designed to be controlled by a 5700A or 5100 Series B calibrator but may be driven by another voltage source such as the 5200A.  When used with a 5100 Series B, the current range of those instruments is extended by a factor of 10 to 1. It can be used with any voltage source not necessarily these Fluke units. Transconductance 1 Siemen (1 ampere per volt) Output Range 0 A to 20 A dc or rms ac (28.3 A peak) Compliance Voltage ±4 V dc or 3 V rms ac (4.25 V peak) DC Accuracy ±(0.025 % of output +1 mA) AC Accuracy ±(0.05 % of output + 1 mA) from 30 Hz to 1 kHz, and ±(0.05 % of output + 1 mA) x f from 1 kHz to 5 kHz, where f = frequency in kHz. Load Capability Drives all resistive and capacitive loads consistent with current and compliance voltage capability. For inductive loads greater than 1 mH and less than maximum inductive loads, output current is limited to 16 A rms (22.6 A peak) Maximum Isolation Voltage ±20 V dc or 20 V ac rms The item is in good condition, tested and working. Operating and Service Manual available here. Shipping Weight (lbs.): 60 Shipping Dimensions (in.): 30 x 24 x 12 Click Here for Terms and Conditions of Sale
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Fluke
Model 5220A
