Fluke 107 F107 Palm-sized Portable/handheld Digital Multimeter Tester Than 17b

US $84.99

Shenzhen, China
Jan 29th

Open on mobile:
QR code

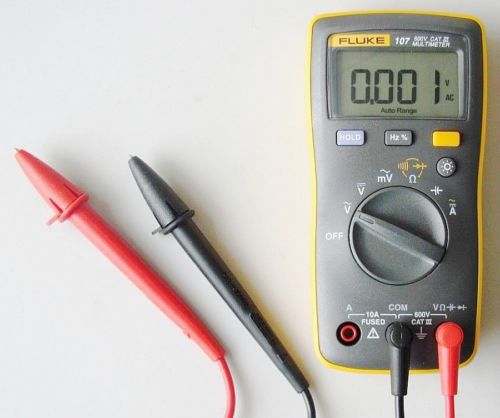

Fluke 107 F107 Palm-sized Portable/Handheld Digital Multimeter Tester than 17B Description 100% Brand New And High Quality The Fluke 107 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you. Voltage, resistance, continuity, capacitance Input terminal for ac and dc current measurements to 10 A and current Backlit display Data hold Diode test, plus frequency and duty cycle measurements Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]) Accuracy Specifications AC Volts (40 Hz to 500Hz)1 Range Resolution Accuracy 6.000 V 60.00 V 600.0 V 0.001 V 0.01 V 0.1 V 1.0 % + 3 DC Volts 6.000 V 60.00 V 600.0 V 0.001 V 0.01 V 0.1 V 0.5 % + 3 AC Millivolts 600.0 mV 0.1 mV 3.0 % + 3 Diode Test2 2.000 V 0.001 V 10 % Resistance (Ohms) 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ 0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3 Capacitance3 50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF 2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5 Frequency4 Hz (10 Hz – 100 kHz) 50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz 0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz 0.1 % + 3 Duty Cycle4 1 % to 99 % 0.1 % 1 % typical 5 AC Current (40 Hz to 200 Hz) 4.000 A 10.00 A 0.001 A 0.01 A 1.5 % + 3 DC Current 4.000 A 10.00 A 0.001 A 0.01 A 1.5 % + 3 All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range). All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10 % and 90 % Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio Normal Mode Rejection Ratio AC Volts 600 V 1 >10 MΩ <100 pF 2 >60 dB at dc, 50 Hz or 60 Hz − AC Millivolts 600 mV >1M, <100 pF >80 dB at 50 Hz or 60 Hz − DC Volts 600 V 1 >10 MΩ <100 pF >100 dB at dc, 50 Hz or 60 Hz >60 dB at 50 Hz or 60 Hz 6 x 105 V Hz Max For mV (AC), input impedance is approximately 1 MΩ. General Specifications Maximum Voltage Between any Terminal and Earth Ground 600 V Display (LCD) 6000 counts, updates 3/sec Battery Type 2 AAA, NEDA 24A, IEC LR03 Battery Life 200 hours minimum Temperature Operating 0 °C to 40 °C Storage -30 °C to 60 °C Relative Humidity Operating Humidity Non-condensing when <10°C ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C Operating Humidity, 40 MΩ Range ≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C Altitude Operating 2000 m Storage 12,000 m Temperature Coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) Fuse Protection for Current Inputs 11A, 1000V Fast Fuse, Fluke specified part only Size (HxWxL) 142 mm x 69 mm x 28mm Weight 200 g IP Rating IEC 60529: IP 40 Safety IEC 61010-1: 600 V CAT III, Pollution Degree 2 Electromagnetic Environment IEC 61326-1: Portable Electromagnetic Compatibility Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)1 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. Package includes: 1 x Fluke 107 Palm-sized Digital Multimeter with Frequency, Diode Test 1 x Test Leads 1 x User's Manual Because of the airspace controls not include battery Payment Description 1.we only accept payment view paypal. It is fast, Easy and Safe. 2.All major credit cards are accepted through our secure payment processor PayPal 3.Payment must be received within 7 business days of auction closing. Shipping Description 1. If you intend to bid for more than 1 item, then we can ship them together. The total shipping fee will be the sum of individual shipping fees. There is no further discount. 2. We only ship to ebay registered address. So please be assure your address in ebay is Correct and Valid. 3. Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. 4. Delivery time depends on destination and other factors, it may takes up to 30 business days. 5. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: Country Shipping time USA 8-12 business days UK 12-20 business days Australia & Canada 12-20 business days Europe & Others 20-25 business days The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding! We ship item promptly and please rate us 5 star on shipping time according to ebay rules. Feedback If you are considering giving a neutral or negative or a low DSR(4 star or below), do write to us and give us an opportunity to address your concerns first. We are always stand-by to help for any questions or concerns. Positive feedback is automatically left for you after you left to us positive feedback. Contact us 1.If you’re in any way dissatisfied or any question with your purchase,please feel free to contact us via ebay messages.And will response within 48 hours.We will try our best to solve it for you.We are committed to ensuring that you are completely satisfied with every transaction. Your satisfactory is our goals 2.Please allow 1-2 business days for us to response. If you do not receive any reply from us,please check your email ensuring your mailbox has not reached full size. 3.Due to some ISP SPAM filter settings, you may not be able to receive our replies; if you have problems receiving our emails, you may need to use a different email account to contact us. 4.If you encounter any trouble. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have and will try our best to resolve the issues. 5.We care about our valued customers and will always try to help you. So if you have any problems, please contact us promptly. Return Description 1. 12-months Warranty for defective items (excluding items damaged and/or misused after receipt). Buy with confidence 2. Refund or replacement request is available only the requests within 2 week after parcel received & returning the item as the same condition as received. 3. Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials. 4. Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable. 5. Return shipping is to be paid by the Buyer. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	107
Weight	200g
Brand	Fluke
