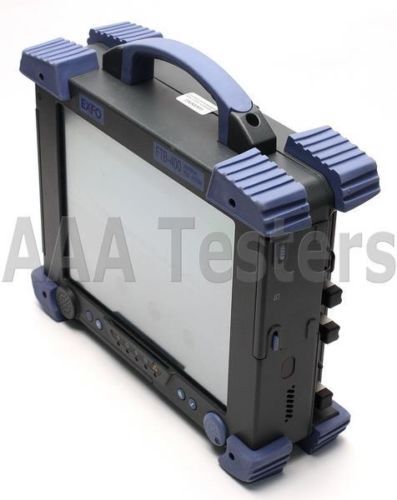

Exfo Ftb-400 Ftb-7300d Sm Fiber Optic Otdr W/ Ftb-psb Ftb 400 7300d

US $4,195.00

  • Toledo, Ohio, United States
  • Jun 9th
                                                              Content on this page requires a newer version of Adobe Flash Player.                      The Following Items Are Included: EXFO FTB-400 OTDR Main Frame (BC# 22043) EXFO FTB-7300D-023B-EI SingleMode OTDR Module (BC# 22207) SM OTDR Source: 1310nm 1550nm EXFO FTB-PSB Pulse Suppressor Box Module (BC# 22205) Ethernet Cable (2) SM SC-SC Fiber Cables Stylus (4) Fiber Wipes AC Adapter/Charger Power Cord RS232 PC Interface Cable User Manual On CD-ROM Carrying Case (G)     BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration!   EXFO FTB-400 MINI-OTDR Fiber Mainframe w/ FTB-7300D-023B-EI Singlemode 1310 / 1550nm OTDR Module & FTB-PSB Pulse Suppressor Box Module   Dynamic Range: 1310 / 1550 nm : 39 / 37 dB   Combined with EXFO OTDR equipment, the Pulse Suppressor Box (PSB) enables loss measurement on the first and last connections of the fiber under test   Includes Carrying Case & Accessories As Listed Above!     Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty     The FTB-400 Universal Test System (UTS) provides a simple, yet efficient,way to perform multiple advanced test operations in outside plant installation,maintenance, and troubleshooting. If you're looking for high efficiency, the FTB-400 Universal Test System is the answer. Benefit from advanced test operations in outside plant installation, maintenance and troubleshooting. Evolve with the latest technologies. From power readings and OTDR testing to optical switching, CD and PMD analysis, DWDM testing, protocol, datacom and data post-processing—the FTB-400 Universal Test System does it all. More importantly, the FTB line of swappable test modules continues to expand with new test applications and accelerated test routines. The powerful FTB-400 can perform simultaneous acquisitions and data post-processing. The ultimate platform for network experts Simultaneous acquisitions and fast data post-processing Scalable range of test applications and field-interchangeable modules Pentium-powered Windows operating system Easy-to-read, high-resolution 30.7 cm transflective (TFT) screen Combining physical, optical, transport and datacom testing in a single box Physical and optical testing: complete fiber and signal characterization using OTDR, OLTS, PMD, CD and OSA test modules Transport and datacom testing: QoS assurance validation using SONET/SDH and Ethernet test modules Powerful Power management is a snap, thanks to the ToolBox software. EXFO’s FTB-400 is based on the Windows® 2000 operating system, run by a Pentium-series processor with up 512 MB of SDRAM Fast, intuitive Sleep mode for power conservation Far-ranging operating time Automated power management Rapid Get moving faster, get results faster. New-generation processing power means acquisitions and data analysis are quicker than ever. And enjoy the advantage of EXFO's exclusive online data post-processing. Quick, easy data transfer Extremely fast acquisitions Efficient data post-processing Two USB ports Infrared (IrDA) port PCMCIA type III Writable CD-ROM SPECIFICATIONS Display: Touchscreen, color, 800 x 600 TFT 307 mm (12 1/16 in) Interfaces Serial RS-232 Parallel port External monitor Two USB 1.1 ports Infrared (IrDA) port Audio microphone In 3.5 mm Audio speaker Out 3.5 mm Two PCMCIA type II or one PCAMCIA type III Storage Internal 40 GB hard drive minimum (over 750 000 OTDR test files) Internal 3.5 in 1.44 MB floppy drive External USB read/write CD-ROM (optional) Flash memory cards (256, 512, 1024 MB) (optional) NTFS file system Batteries Rechargeable NiMH battery pack (two batteries for two-slot receptacle, two for four-slot receptacle, four for seven-slot receptacle, two for eight-slot receptacle) > 8 h of continuous operation as per Bellcore TR-NWT-001138 Power supply 100–240 VAC, 50/60 Hz and 12–24 VDC for the two-slot (GP-402) and the seven-slot (GP-407) module receptacles; 100–240 VAC, 50/60 Hz and 24 VDC for the four-slot (GP-404) module receptacle; and 100-240 VAC, 50/60 Hz for the eight-slot (GP-408) module receptacle GENERAL SPECIFICATIONS Temperature operating: 0 ?C to 50 ?C (32 ?F to 122 ?F) storage: –40 ?C to 60 ?C (–40 ?F to 140?F) Relative humidity 0 % to 95 % (non-condensing)   Size (H x W x D) Mainframe + eight-slot module receptacle: 318 mm x 343 mm x 246 mm (12 1/2 in x 13 1/2 in x 9 11/16 in)   Weight Mainframe + eight-slot module receptacle, including two NiMH batteries: 11.1 kg (24.5 lb)   Vibration: < 1.5 g. at 10 Hz to 500 Hz (on three main axes)   Mechanical shock: e < 760 mm on six sides and eight main edges (according to GR-196-CORE)   Isolation: Spillproof and splashproof   CE compliance: Class A certification       FTB-7300D SM Short Dead Zones EXFO's FTB-7200D and FTB-7300D OTDRs help you boost test productivity for inside-plant applications. Their exceptional 1 m event dead zone enables you to easily locate and characterize all events between the transmitter and the central office's fiber distribution panel. This feature also comes in handy in metro, access and FTTH network applications, where events are usually closely spaced. Multimode and Singlemode Flexibility The FTB-7200D model combines singlemode and multimode functionalities, ideal for private/premises/enterprise network testing. It offers the industry's shortest dead zones, as well as lightning-fast acquisitions. Test multimode fiber within premises, or singlemode fiber between premises—all with a single OTDR unit—and maximize your return on investment. Optimizing Passive Optical Network (PON) Testing Designed to meet the testing requirements brought by FTTH networks in general, and PONs in particular, the FTB-7300D enables testing at 1310, 1490 and 1550 nm. What's more, EXFO's next-generation OTDR software lets you test through high-port-count splitters—even 1x32 splitters—with loss levels of up to18 dB. Delivering Higher Accuracy for Event Location The FTB-7200D and FTB-7300D OTDRs locate events with pinpoint accuracy: Up to 128 000 sampling points for higher trace resolution Sampling resolution down to 4 cm, for ultra-accurate fault location Better linearity—down to ±0.03 dB/dB—for more accurate event characterization Technical Specifications: Parameter Specification Wavelength i (nm) 1310 ± 20/1550 ± 20 Dynamic range at 20 µs j (dB) 39/37 Event dead zone k (m) 1/1 Attenuation dead zone k (m) 4.5/5 Distance range (km) 1.25, 2.5, 5, 10, 20, 40, 80, 160, 260 Pulse width (ns) 5, 10, 30, 100, 275, 1000, 2500, 10 000, 20 000 Linearity (dB/dB) ±0.03 Loss threshold (dB) 0.01 Loss resolution (dB) 0.001 Sampling resolution (m) 0.04 to 5 Sampling points Up to 128 000 Distance uncertainty n (m) ± (0.75 + 0.0025 % x distance + sampling resolution) Measurement time User-defined (60 min maximum) Typical real-time refresh (Hz) 3 Stable source output power o (dBm) –7 (7200D), –3.5 (7300D) Visual fault locator (optional) Laser, 650 nm ± 10 nm CW, typical Pout in 62.5/125 µm: 3 dBm (2 mW)     EXFO Pulse Suppressor Box An OTDR testing essential Combined with EXFO OTDR equipment, the Pulse Suppressor Box (PSB) enables loss measurement on the first and last connections of the fiber under test. Choice of configurations Typically, dead zones are about the same length as the optical pulse plus a few meters. So the Pulse Suppressor Box configuration should be longer than the pulse selected for the test session. The PSB is available in lengths of 300 m, 500 m and 1500 m, with a choice of singlemode or multimode fiber. EXFO also offers a wide range of connectors for quick connection to most OTDR and patch panel ports. The PSB is housed in a compact, field-proof case for maximum protection. How it works Often, the longest dead zone occurs at the first connection (the OTDR bulkhead connector). Because it is impossible to measure loss within a dead zone, loss due to splices and connectors close to the OTDR launch point cannot be determined under ordinary circumstances. However, you can work around this problem by connecting the Pulse Suppressor Box between the OTDR and the fiber under test. The length of fiber in the PSB distances the dead zone from the splices and connectors to be checked, and these crucial loss values can then be measured. Loss from the last connector of the fiber under test can be measured in the same way, by placing the extra fiber length of the PSB after the connector. This extra fiber enables the OTDR to compare backscatter levels before and after the event to calculate the connector loss. Features: Rugged and compact case Metal lid support prevents lid from falling and damaging patchcords Specifications: Size (H x W x D) 20 cm x 15 cm x 10 cm (8 in x 6 in x 4 in) Weight < 2.5 kg (< 5.5 lb) External patchcord length 2 x 3 m (2 x 10 ft) Multimode fiber 50/125 µm Attenuation Range: 850 nm 2.4 to 3.0 dB/km 1300 nm 0.6 to 1.2 dB/km     Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet.   Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more!   We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you!   Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381     We Ship World Wide!   We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities.   UPS Ground   United States   USD 0.00 USPS Express Mail International (EMS)   Worldwide   USD 0.00   We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED               Reach your goals with Kyozou eBay Selling Tools
Condition:
Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...
Brand EXFO
MPN FTB-400
Model FTB-400
