Emi Emc Test Antenna 20mhz To 3ghz Incl Calibrationdata

US $2,998.00

Auw, Germany
Jan 29th

Open on mobile:
QR code

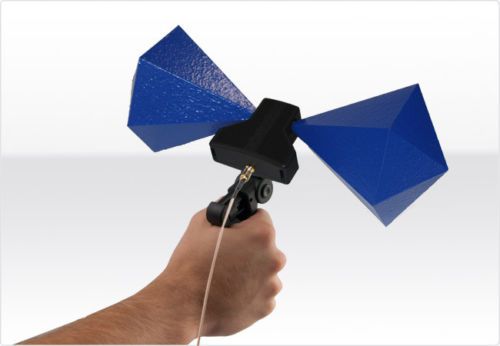

BicoLOG 20300 20MHz to 3GHz biconical broadband EMC Test Antenna incl. typical calibration datas Details see manufacturers website at aaronia.com Only US$ 2998,00 incl. worldwide EXPRESS shipping and 10 years warranty! REFERENCES (Current orders) NATO, Belgium Australian Government Department of Defence, Australia EADS (European Aeronautic Defence & Space Company), Germany Los Alamos National Labratory, USA Eurocontrol, Maastricht Hyundai Europe, Germany University of Florida, USA Rohde & Schwarz Rome, Italy Calibration & standards: The biconical antennas of the BicoLOG® series are suitable for interference field strength measurement. The specialized broadband characteristics allow measurements to be taken in the complete specified frequency range without switching. These antennas are suitable for measurement according to the following standards and procedures: CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022, MIL-Std-461. Highlights: Only a single broadband antenna for the complete frequency range from 20MHz up to 3GHz Optimal for usage with spectrum analysers for EMC measurement Suitable for mobile use Robust design Small weight and dimensions Made in Germany 10 years warranty Specifications: BicoLOG 5070: Design: Biconical Frequency range: 50MHz-700MHz Max. transmission power: 1W (30dBm or 0dbW) Nominal impedance: 50 Ohms Gain: -29dBi to 1dBi Antenna factor: 20-33dB/m Calibration points: 70 (5MHz or 10MHz steps) RF connector: N (female) or SMA with adapter Dimensions (L/W/D): (350x160x140) mm Weight: 350gr Warrenty: 10 years Specifications subject to change without notice BicoLOG 30100: Design: Biconical Frequency range: 30MHz-1GHz Max. transmission power: 1W (30dBm or 0dbW) Nominal impedance: 50 Ohms Gain: -39dBi to 1dBi Antenna factor: 20-41dB/m Calibration points: 104 (5MHz or 10MHz steps) RF connector: N (female) or SMA with adapter Dimensions (L/W/D): (350x160x140) mm Weight: 350gr Warrenty: 10 years BicoLOG 20300: Design: Biconical Frequency range: 20MHz-3GHz Max. transmission power: 1W (30dBm or 0dbW) Nominal impedance: 50 Ohms Gain: -45dBi to 1dBi Antenna factor: 20-42dB/m Calibration points: 106 (5MHz or 10MHz steps) RF connector: N (female) or SMA with adapter Dimensions (L/W/D): (350x160x140) mm Weight: 350gr Warrenty: 10 years Included with delivery: BicoLOG Antenna Typical Calibration Data with up to 106 calibration points (5MHz or 10MHz steps!) Frequency Range Aaronia BicoLOG® EMC Antennas: Antenna type: 20MHz 30MHz 50MHz 700MHz 1GHz 3GHz Total: Examples for the utilizable frequency range: BicoLOG® 5070 No No Yes Yes No No 50MHz-700MHz ISM433, ISM866, Radio & TV (UKW, VHF) BicoLOG® 30100 N0 Yes Yes Yes Yes No 30MHz-1GHz VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+ BicoLOG® 20100 Yes Yes Yes Yes Yes No 20MHz-1GHz CB-Radio, VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+ BicoLOG® 20300 Yes Yes Yes Yes Yes Yes 20MHz-3GHz CB-Radio, VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+, GSM1800, UMTS, 2.4GHz WLan © Aaronia AG, DE-54597 Euscheid, www.aaronia.de, Tel. ++49(0)6556-93033 Aaronia AG, Gewerbegebiet Aaronia AG, DE-54597 Euscheid, Germany Tel. ++49(0)6556-93033, Fax ++49(0)6556-93034 Email:mail@aaronia.de URL:www.aaronia.com

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	BicoLOG 20300
Unit Type	Antenna
Manufacturer	Aaronia
