Elliott Steam Turbine With 80 Kw Generator. Rebuilt With Switch Gear. Warrantee

US $100,000.00

Saylorsburg, Pennsylvania, United States
Jan 30th

Open on mobile:
QR code

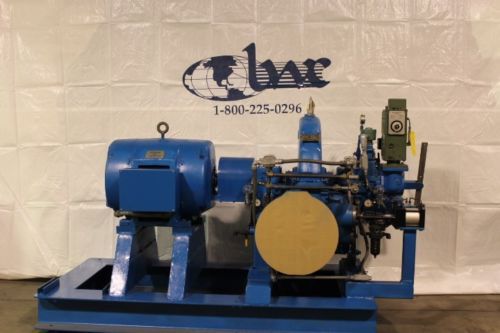

You are looking at a reconditioned Elliott Steam Turbine and Generator. The turbine has been totally disassembled and all parts replaced with new or reconditioned to like new standards. Rotor has been magna-fluxed, polished, and Balanced. Turbine case has been sandblasted, magna-fluxed, all sealing surfaces have been either machined or polished and resealed and assembled with new hardware. Nozzle block was ground and polished for better steam flow. Hand valve was reconditioned with new valve stem and the pneumatic cylinder for automatic control replaced. Turbine was reassembled with new journal and thrust bearings, new carbon shaft seals, and all clearances set to factory specifications. Steam chest was sandblasted, magna-fluxed and internal parts were either replaced with new or reconditioned parts, all valves lapped and blued to ensure seating, reassembled with new hardware and sealed. The Governor system for the turbine was upgraded to a Woodward PG for added stability and reliability. The generator was disassembled, cleaned, checked electrically, rotor was cleaned, balanced, and reassembled with new ball bearings. Generator was reassembled and again checked electrically. All of this comes assembled on a platform with bearing housing cooling system ready to be hooked up to your chilled water. Switch gear is included with the turbine generator and can be used as is or you can have it upgraded to your needs at additional cost. Switch gear includes a panel that controls turbine cooling, running and emergency stop. Specifications are as follows: Elliott DYR-PG Turbine 149 H.P. 3650 rpm max rpm 3750 trip speed 150 PSIG inlet max inlet 250 PSIG 366 degrees F. temp inlet max temp. 500 degrees F 0 PSIG exhaust max exh. 60 PSIG Book 100 First critical 9350 rpm Induction Generator G.E. Type Kopig KW 80 KVA 107 PF 75% RPM 2 pole 3600 plus slip rpm Volts 240 Amps 258 HZ 60 Phase 3 Frame 444 US Switch Gear & Panel Controls, switch gear G.E. Controls Red line Warrantee included on Turbine and Generator Buy with confidence. BWC Technologies has been in the business or turbine repair for over 26 years. We have excellent service, both in house and in the field. Check us out at bwctechnologies.com If you have any questions or need different steam requirements for this package, please feel free to contact us. Shipping will be freight, or within 400 miles we can deliver at additional cost. Thanks for looking.

Condition	Seller refurbished : An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details.
Seller Notes	“Reconditioned and upgraded steam turbine. Reconditioned generator.”
