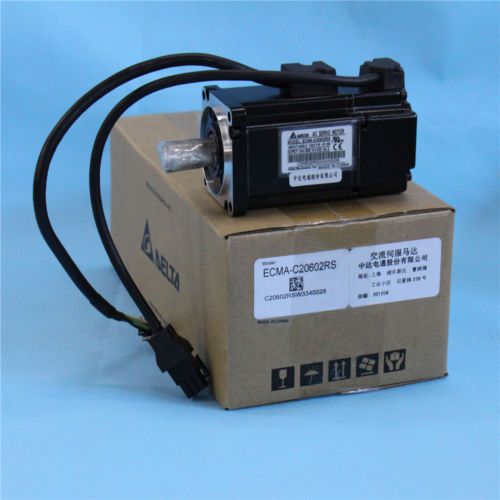

ECMA-C20602RS+ASD-B2-0221-B Delta 220V 200W 0.64NM 3000RPM Servokit DHL FREESHIP, US $630.00 – Picture 0

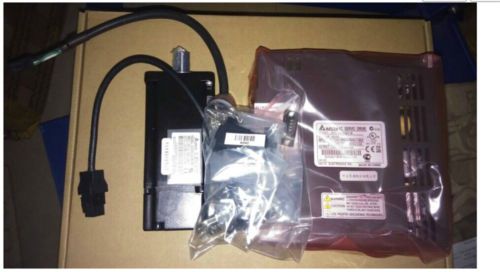

ECMA-C20602RS+ASD-B2-0221-B Delta 220V 200W 0.64NM 3000RPM Servokit DHL FREESHIP, US $630.00 – Picture 1

ECMA-C20602RS+ASD-B2-0221-B Delta 220V 200W 0.64NM 3000RPM Servokit DHL FREESHIP, US $630.00 – Picture 2

Ecma-c20602rs+asd-b2-0221-b Delta 220v 200w 0.64nm 3000rpm Servokit Dhl Freeship

US $630.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

Motor+Drive: ECMA-C20602RS+ASD-B2-0221-B Package Content: 1* 200W AC servo Motor 1* 200W AC Servo Drive 1* 3M Encoder Cable & Power Cable 1 Motor Specifications Model ECMA-C20602RS Product Name Electronic Commutation Motor Servo Type AC Servo Name of the Series B2 Rated Voltage 220V Encoder Type Incremental, 17-bit Motor Frame Size 60mm Type of Shaft Diameter and Oil Seal Keyway(with fixed screw holes) w/o Brake with Oil Seal Shaft Diameter S=14mm Rated Power Output 200W Rated torque (N-m)*1 0.64 Max. torque (N-m) 1.92 Rated Speed 3000 rpm Max. speed 5000 rpm Rated current (A) 1.55 Max. current (A) 4.65 Power rating (kW/s)(without brake) 22.4 Rotor moment of inertia(x 10 -4 kg.m2 ) (without brake) 0.177 Mechanical time constant(ms) (without brake) 0.80 Torque constant-KT (N-m/A) 0.41 Voltage constant-KE (mV/(r/min)) 16.0 Armature resistance (Ohm) 2.79 Armature inductance (mH) 12.07 Electrical time constant (ms) 4.30 Insulation class Class A (UL), Class B (CE) Insulation resistance > 100 M ohm, DC 500 V Insulation strength AC 1500V, 60 sec Weight (kg) (without brake) 1.2 Kg Max. radial shaft load (N) 196 Max. thrust shaft load (N) 68 Vibration grade (?m) 15 Operating temperature 0~40 degree centigrade Storage temperature -10~80 degree centigrade Operating humidity 20% to 90% RH (non-condensing) Storage humidity 20% to 90% RH (non-condensing) Vibration capacity 2.5G IP Rating IP65 Approvals CE UL 2 Drive Specifications Model ASD-B2-0221-B Product Name AC SERVO Drive Series B2 Model Type B Power Supply Phase / Voltage Three-phase: 170 ~ 255VAC, 50/60Hz ±5% Single-phase: 200 ~ 255VAC, 50/60Hz ±5% Continuous Output Current 1.55Arms Cooling method Natural Air Circulation Encoder Resolution /Feedback Resolution 17-bit (160000 p/rev) Main Circuit Control SVPWM Control Tuning Modes Auto/Manual Dynamic Brake - Position Control Mode Max. Input Pulse Frequency Line driver: Max. 500Kpps (low speed)/Max.4Mpps(high speed) Open collector: Max. 200Kpps Pulse Type Pulse + Direction, A phase + B phase, CCW pulse + CW pulse Command Source External pulse train Smoothing Strategy Low-pass filter Electronic Gear Electronic gear N/M multiple N: 1 ~ (2 26 -1)/M:1 ~ (2 31 -1) 1/50 < N/M < 25600 Torque Limit Operation Set by parameters Feed Forward Compensation Set by parameters Speed Control Mode Analog Input Command Voltage Range 0 ~ ±10 VDC Input Resistance 10 K? Time Constant 2.2 us Speed Control Range*1 1 : 5000 Command Source External analog signal /Internal parameters Smoothing Strategy Low-pass and S-curve filter Torque Limit Operation Set by parameters or via Analog input Responsiveness Characteristic Maximum 550Hz Speed Fluctuation Rate *2(at rated speed) 0.01% or less at load fluctuation 0 to 100% 0.01% or less at power fluctuation ±10% 0.01% or less at 0 to 50 degree centigrade ambient temperature fluctuation Torque Control Mode Analog Command Input Voltage Range 0 ~ ±10 VDC Input Resistance 10 K? Time Constant 2.2 us Command Source External analog signal / Internal parameters Smoothing Strategy Low-pass filter Speed Limit Operation Parameter Setting or via Analog input Analog Monitor Output Monitor signal can set by parameters (Output voltage range: ±8 V) Communication Interface RS-232/RS-485

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Delta
MPN	ECMA-C20602RS+ASD-B2-0221-B
Model	ECMA-C20602RS+ASD-B2-0221-B
Country of Manufacture	China
