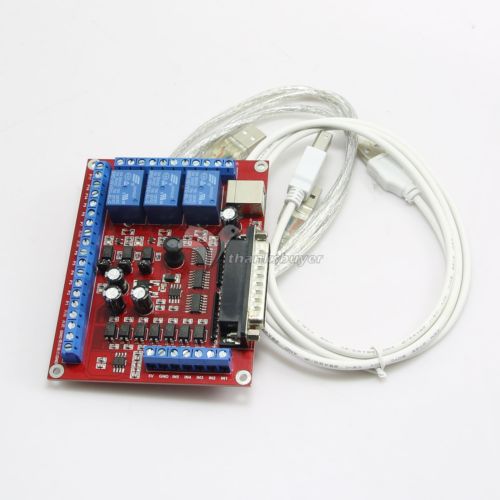

DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle, US $15.75 – Picture 0

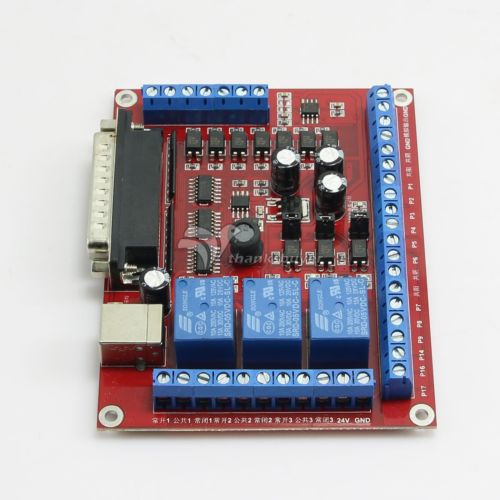

DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle, US $15.75 – Picture 1

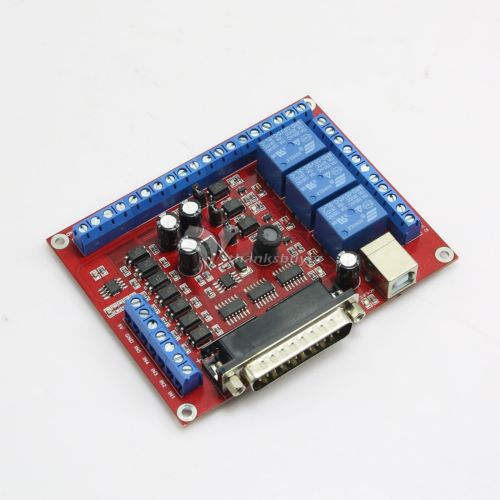

DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle, US $15.75 – Picture 2

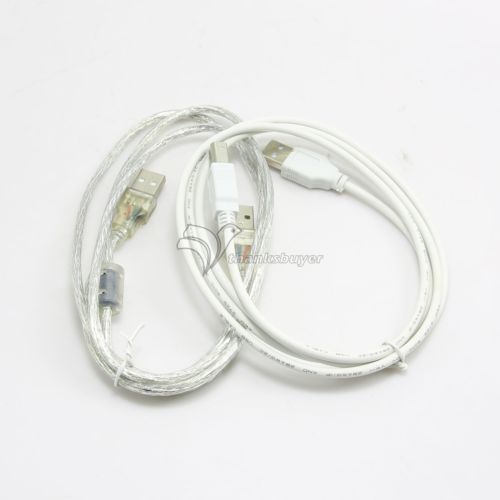

DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle, US $15.75 – Picture 3

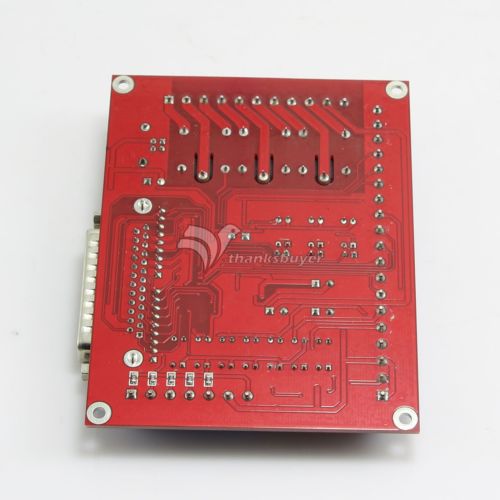

DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle, US $15.75 – Picture 4

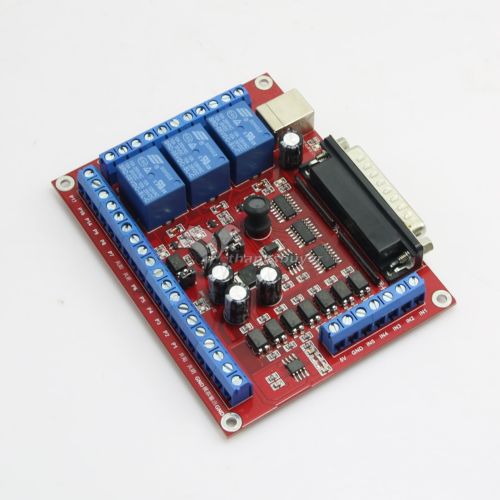

DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle, US $15.75 – Picture 5

DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle, US $15.75 – Picture 6

Diy Cnc 6 Axis Mach3 Engraving Machine Interface Breakout Board Usb Pwm Spindle

US $15.75

Shenzhen, China, China
Jan 29th

Open on mobile:
QR code

Welcome to have a look at my store, we offer a variety of different RC parts and RC tools that you may interest in, click here! DIY CNC 6 Axis MACH3 Engraving Machine Interface Breakout Board USB PWM Spindle Usage: - The CNC control board is designed for MACH3 software used in computer with line print terminal.The CNC control board is extensively used in the CNC machining,such as: CNC engraving machine,CNC lathes, CNC Plasma cutting machine,CNC laser engraving machine,CNC milling machine,CNC Machining center and so on.It can be the most cost-effective method using the CNC control board with mach3 software in the computer. Features: - 1. High integration;high reliability - 2. Absolute voltage isolation. The CNC control board is powered by computer USB port used as digital power that disgned as common cathode and common ancode which is connecticed to motor dirver’s common port,and another power is DC 12V to DC 24V which is used as analog power.It’s much more safe and stable by isolating the digital power from analog power. - 3. Five signal ports are isolated by optocouplers which can be used as limitting position,finding origin points,starting and Estopping. There is no interruption with isolation of optocouplers. - 4. Twelve output ports can control six motors simultaneously,and they are also can be used for some ports as you like.Some ports are communally designed for two functions, choice should be made if you want to use them. - 5. Three relays are put on the board that can be programmed in the mach3 software,and there are three leds used for pilot lamp.The relays can be used to control external equipments such as solenoid valve, cooling pump and so on. - 6.Programmed analog voltage from zero to ten volt can be set.The analog voltage can control the speed of spindle motor. - 7. The CNC control board can control step motor diver with common cathode or common anode.It also can control servo motor with digital signal. - 8.The analog power can be from nine volt to thrity volt. Package list: - 1 * CNC 6 Axis Interface Breakout Board - 1 * USB Cable Click here to download the manual !!! Payment Terms 1. We only accept paypal payment, other payment methods are not acceptable. 2. Payment should be completed within 7 days of bid or auction closing. Or unpaid dispute will be filed for non-payer after 7 days of sales day. Shipping Terms1. We ship all the items to your paypal address, please make sure that your paypal address must be correct or send us a message to inform us if you want to change a address before you pay for it. 2. We ship all our buyers packages with tracking number, and all the items will be sent within 1-2 business days after payment received. 3. Usual we offer free shipping by EUB or Paypal package, but if you would like a express delivery, we can ship your package by International EMS or DHL on the condition that you are willing to pay for the extra postage. 4. All the package which weight is over 2kg, we will ship it by International EMS or DHL as other methods can not ship to, and it commonly takes 5-10 business days to arrive you. Delivery Time Countries 7 ~ 15 days United States (ship by International EUB) 7 ~ 15 days United Kingdom, Canada, Australia ( ship by Paypal Package) Return Terms 1. If you receive defective item, please kindly notify us within 14 days. We will guide you the returning instruction for replacement or refund. 2. If you purchased in improper condition, please NOTE that the sipping and handling fee will not be refund, all return shipping fee should paid by the buyer unless item DOA. 3. We reserve the right to refuse any returns for objective reasons. Custom Duties & Taxes 1. Import duties, taxes, and charges are not included in the item price or postage cost. These charges are the buyer's responsibility. 2. Avoiding some unnecessary trouble, please check with your country's customs office to inform us what we should declare its value before shipping. Feedback 1. If you are dissatisfied for any reason, please don't be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. 2. If you are satisfied with the product you received, please kindly leave us a positive feedback and 5 star DSR. If there is any problem of your order, please feel free to contact us firstly, we are responsible and credible seller, will follow it for you asap. inkfrog terapeak i000000

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

thanksbuyer
