Dc12v 4 Ch Rf 433mhz Wireless Remote Control Switch Transmitter Receiver 200m

US $17.99

???, ???, China
Mar 9th

Open on mobile:
QR code

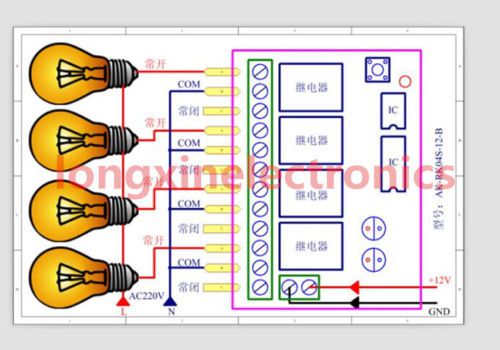

DC12V 4 CH RF 433MHZ Wireless Remote Control Switch Transmitter Receiver 200M Item specifics Place of Origin:China (Mainland)is_customized:YesBrand Name:AokeMax. Voltage:12vMax. Current:10A Product Description 12V 4 CH 10A RF wireless remote control system 1 Receiver & 2 Transitter 200M Transmitting Distance It is a learning code wireless remote control switch (receiver),the output way /working way can be change as you like ,it is easy to match the transmitter . The AK-RK04S-12 4 channel wireless remote control switch with 4 Relays. It can make the equipment turn or reverse .on/off and so on come true. The volume is small and the performance is stable and reliable ,high receive sensitivity, Application range: Auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc. The switch can compatible 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone need of choosing the wireless remote control as they like to work with it . Output working way: 1. Self-lock ---connect the JP1 with the cutting out cap. 2. Jog---the cutting-out cap is non-occupation, JP1 and JP2 do not connect either. 3.inter-lock---- Connect the Jp2 with the Cutting out cap, 4. 2 Channel is self-lock and 2 channel is Jog ,connect the Jp1 and Jp2 with the cutting-out cap . Jog---- press one button is ON . loosen your finger on the same button is OFF .need one channel switch and one buttons remote control ) Self -lock----- press one button for one time is ON .press the same button again is OFF.need one channel switch and one buttons remote control Inter-lock-------press one button is ON , press another button is OFF . (need one channel switch and 2 buttons remote control Please notice that .here is the 4CH receiver and 4 buttons transmitter, you just can choose the self-lock or jog Learning and remove method 1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully . 2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control 3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully . Technique Data 1.working voltage :DC12V 2.quiescent condition :less than 6mA 3.working temperature :-40'c+80'c 4.receiver sensitivity : more than -105dBm 5.working frequency :433MHz 6.output voltage:DC and AC is optional 7.output current : less than 3A 8.max load current:10A 9.72mm*52mm*26mm remote control transmitter : Detailed Product Description 1.Wireless remote control 2.Working voltage :DC12V 3.Operating Current 30MA 1000 meters four button remote control Working voltage :DC12V Transmitting distance;50-200 meters Encoding Type :fixed code, learning, rolling code(hopping code) Encoding way: fixed code by soldering. Size :85 * 37 * 18 Pearl white shell color Dimensions: 58 x 39 x 14mm / 2.29 x 1.54 x 0.55in(L x W x H) Features: This product covers application ranging from simple domestic remote control to autonomous control Extremely easy to set up and use It's applied to the annunciator of family, car, motorcycle etc. These remote controls are designed to control a wide variety of electronic devices with a wireless signal Package content: 1 pcs receiver (with a plastic case) 2 pcs remote (with battery) Shipping and Handling We ship worldwide by international air mail from Hongkong Airway Postal and China Airway postal. Email us before payment to arrange UPS Speed post for 2 to 7 days delivery. We will offer a free Registered Number for the flat rate shipping service once the total value of your order is over $25. Otherwise, you have to pay extra $2.5 as the registered cost if you want to apply register service. We reserve the rights not to ship to any zero/negative feedback rating buyers. Items will be shipped out in most cases within 48 hours of payment being received. (Excluding Weekends and Public Holidays) Due to security reason, we reserve the right not to send items to unconfirmed Paypal address. Delivery Time Country Approx. Delivery time United States 7-21 working days Canada / United Kingdom / Australia 15-30 working days Italy / France / Spain / Germany/ Eastern Europe/Brazil / South America 30-40 working days
