Dc-dc 100w 3-35v To 3.5-35v Boost Converter Power Supply Led Voltmeter Module 6a

US $9.59

GuangZhou, China
Jun 9th

Open on mobile:
QR code

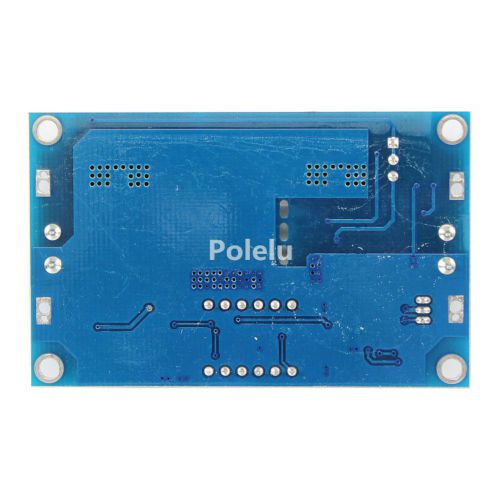

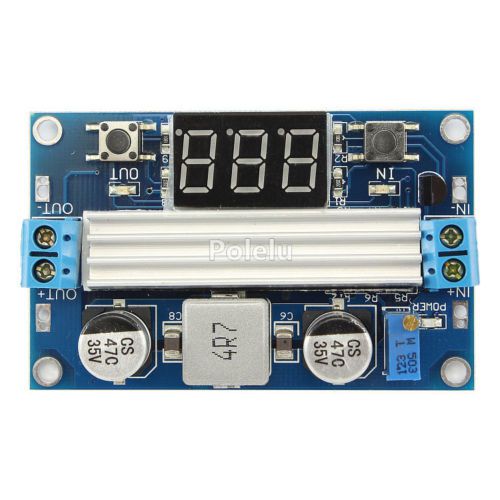

DC-DC 100W 3-35V to 3.5-35V Boost Converter Power Supply + LED Voltmeter Module Description 1.Input Voltage:3-35V DC (Note: When input voltage is less than 4V, onboard voltmeter will not work). 2.Input Current:9A (max). 3.Output Voltage:3.5-35V DC (this board is boosting board, output voltage>=Input voltage). 4.Output Current:6A (max). 5.Output Power: 75W (when the input and output voltage greater than 16V,can up to 100W). 6.Conversion Efficiency: 96% (the highest). 7.6V up to 19V;2.9A,the conversion efficiency is 91% 12V up to 19V;4.4A,the conversion efficiency is 93% 18V up to 32V;106W,the conversion efficiency is 95% 7.Onboard Voltmeter Range:4-40V ,Error:+/-0.1V. 8.Short circuit protection:Yes(limit current 14A) 9.Input reverse connection protection:NO 10.Size:67*42*12mm (L*W*H) 11.Weight:38g Onboard we have a voltmeter to show clearly the input / output voltage (we can select to show input/output voltage by pressing on the button onboard). When the "IN" LED lights on, the voltmeter displays input voltage; When the "OUT" LED lights on, the voltmeter displays output voltage. We can also turn off the voltmeter LED by removing the jumper cap at "P3" (please refer to below image). If you need the method of calibrating onboard voltmeter ,will send by e-mail. Application: 1. DIY a power supply, 5V can be input, output can 5-35V adjustable. 2. The power supply for your electronic device, according to your system can set the output voltage value. For example 3.7V lithium battery up to 5V as mobile power; 7.4V or 12V up to 19V as the laptop power supply. 3. As a the vehicle power supply, for your laptop, PDA or digital products supply. Package included: 1x DC-DC 100W 3-35V to 3.5-35V Boost Module With LED Voltmeter Voltage display Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. We reserve the right to cancel your order if the payment is not made within 7 calendar days of checkout. We will use your Ebay/Paypal shipping address as the delivery address. Please make sure to provide us with correct and detailed shipping address. To Russia, please the receiver name must write your full name as post office required. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Shipping Detail All the items to USA will ship via ePacket with tracking number. To UK and Australia the buyer can choose "Expedited Int'l Shipping", we also will ship via ePacket with tracking number, it is better than registered mail,usually delivery time is 7-20 business day. But to Australia ZIP code 2898/2899/6798/6799/7151 can NOT ship via ePacket. Other countries, total price below $30 we will ship your item without tracking number. Otherwise, if you need Registered Mail shipping, please add $2.5(Can choose "Standard Int'l Shipping",we will ship via registered mail). Usually all the items will be shipped via Hong Kong Post Airmail or China Post Airmail. If you need the other express way(EMS/DHL/FedEx/UPS),please contact with us for the correct price. Your order will be dispatched within 2 business days after the full payment is cleared. Airmail Packets' Delivery Time(reference only): USA,Australia,New Zealand,Southeast Asia, East Asia. 7-20 business days. Most European countries (France,Spain,Germany,UK,Sweden, Norway, Denmark,Netherlands,Austria,Portugal, Croatia, Finland, Switzerland, etc.) ,Canada,10-25 business days. Some remote city will take more than 25 business day. Italy,Russia, Brazil, Turkey, Ukraine, India, 14-35 business days, 90% take long time. Eastern Europe,West Asia,Central Asia, 15-30 business days,80% take long time. Africa,Chile,Argentina,Mexico,Other Countries. 15-40 business days,usually long time. Delivery time depends on postal process and other factors(Weather,Vacation,Customs,etc.),it can receive as fast as 7 days,but it can take as long as 4-7 weeks in some cases. If you do not get your item in reference delivery time, please contact us first through ebay message (Please do NOT open any case), we will reply you as soon as possible(within 24 business hours). Return Policy Please contact us before you leave Negative or Neutral Feedback if you are not satisfied with our products,we will resolve it asap. DOA(Dead On Arrival) or Wrong Item will be offered exchange. Refund will be offered if stock is not available Defective goods must be returned within 30 days after receiving it for exchange or refund. Buyer is responsible for return shipping cost in any situations. Contact us Please feel free to contact us from ebay if you have any questions , we will reply you within 48 hours except the weekends and public holidays. Please contact with us before you leaving Negative or Neutral feedback, and please DO NOT open any case, we will try my best to resolve your problems ASAP.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country of Manufacture	China
Model	Voltage step up converter
Input voltage	3V-35V
Brand	Geneiric
Output voltage	3.5V~35V
MPN	Does not apply
Output current	6A
UPC	Does not apply
