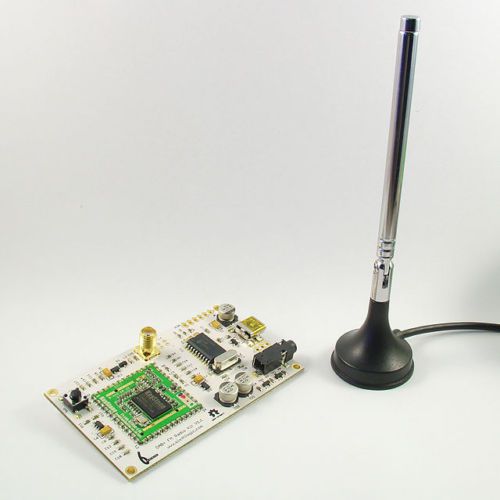

Dab+ Fm Digital Radio Development Board Pro

AU $86.00

  • Sydney, Australia
  • Jun 9th

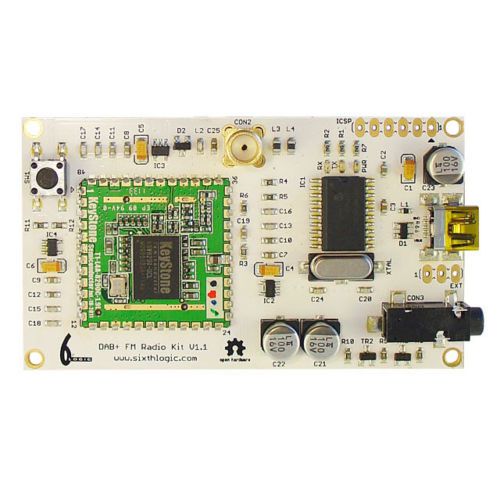

Potential uses for the board include building a PC or car-controlled DAB+ FM Digital Radio or a standalone DAB+ FM Digital Radio (with external microcontroller). It also features the new SlideShow function, which displays SlideShow transmitted from the radio stations, including weather, news, album cover, race odds, and more. The hardware includes a Power Supply Circuit, a Microchip PIC18F14K50, Reset Circuit, ICSP, EXT port, and Push Button (SW1). The board is powered by 5VDC from USB, and the power is distributed into 1.2VDC, 1.8VDC, and 3.3VDC LDO to the KeyStone T2_L4A_8650C module. The microcontroller is flashed with a customized CDC RS-232 Emulation Demo firmware and controls the power, reset, and audio shunt of the KeyStone module. The ICSP programming port is standard, and the EXT port has two 5V logic signals used to control external audio circuitry's power and mute. The push button triggers the PIC18F14K50's USB HID bootloader in programming mode when pressed during power-up. The DAB+ FM Digital Radio Development Board Pro is an Australian-designed platform for the development and evaluation of DAB+, SlideShow, and FM receivers. It includes a Keystone T2_L4A_8650C DAB/FM module and a Microchip PIC18F14K50 microcontroller. The T2_L4A_8650C module is an ultra-low power DAB/FM receiver module that is ETSI EN 300 401 compliant. It has DAB/DAB+ sensitivity to -99dBm and can decode multiple audio services up to 256kbps without external RAM. The board also provides FM with RDS, and antenna input for FM/Band3. The microcontroller has a USB to Serial interface for the T2_L4A_8650C module to communicate with the host PC. The board dimensions are 78mm x 45mm. In summary, the DAB+ FM Digital Radio Development Board Pro provides a versatile platform for developing and evaluating DAB+, SlideShow, and FM receivers with a range of useful features and potential applications.
Condition: New Brand Sixth Logic
Model SLG001
