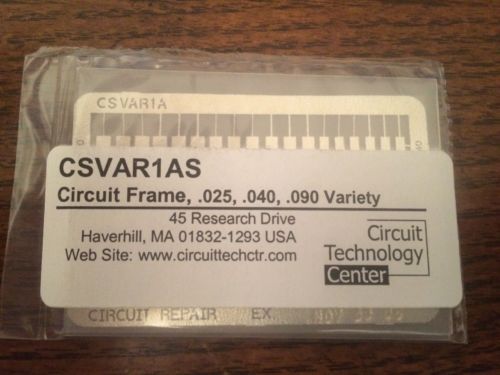

CSVAR1AS Circuit Frame for replacement of Damage Circuit Barnd new, US $35.00 – Picture 0
CSVAR1AS Circuit Frame for replacement of Damage Circuit Barnd new, US $35.00 – Picture 1

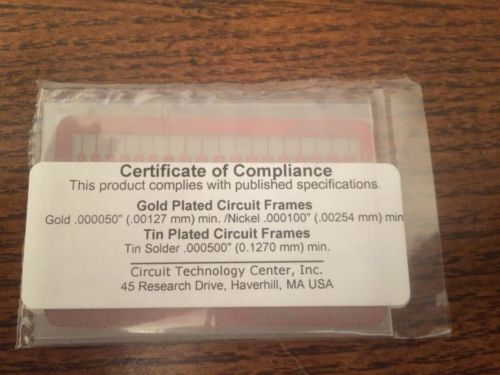

CSVAR1AS Circuit Frame for replacement of Damage Circuit Barnd new, US $35.00 – Picture 2
CSVAR1AS Circuit Frame for replacement of Damage Circuit Barnd new, US $35.00 – Picture 0
CSVAR1AS Circuit Frame for replacement of Damage Circuit Barnd new, US $35.00 – Picture 1
CSVAR1AS Circuit Frame for replacement of Damage Circuit Barnd new, US $35.00 – Picture 2

Csvar1as Circuit Frame For Replacement Of Damage Circuit Barnd New

US $35.00

  • Miami, Florida, United States
  • Jan 31st
Open on mobile:
QR code
Variety Shown Approximately 2X Actual Size Imagine replacing damaged surface mount pads, lands and conductors without the mess of liquid epoxy, with a bond strength equal to the original, in just a few minutes. Circuit Frames with dry-film adhesive backing make this delicate repair procedure easy, fast and highly reliable.  This reliable IPC recommended procedure meets the highest conformance level for this type of repair. For over 30 years Circuit Frames have been used by thousands of commercial, medical and military manufacturers around the globe.  Overall Frame Size 2.25" x 1.50" (57 x 38 mm) Base Material Rolled annealed copper foil .0014" (.036 mm) thick. Adhesive Backing Phenolic film adhesive .002" (.051 mm) thick. Bonding Temperature 475°F ± 25°F (246°C ± 14°C) Bonding Time 30 seconds Peel Strength Minimum 8 lbs/inch (1.43 kg/cm) after cure to FR-4 material. Shelf Life 6 months minimum. Circuit Frames are packaged separately and labeled with the expiration date. Plating .0001" (.0025 mm) Bright Tin (Lead Free) RoHS and REACH CircuitMedic Circuit Frames contain less than 0.1% by weight any substance listed as a very high concern in Article 59 of REACH.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Circuit Technology
MPN CSVAR1AS
Model CSVAR1AS
