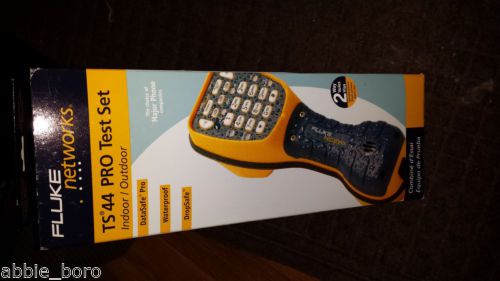

Brand New Fluke Networks Ts44 Pro Telephone Test Set With Piercing Pin Cord

US $225.00

  • Dover, New Hampshire, United States
  • Jan 29th

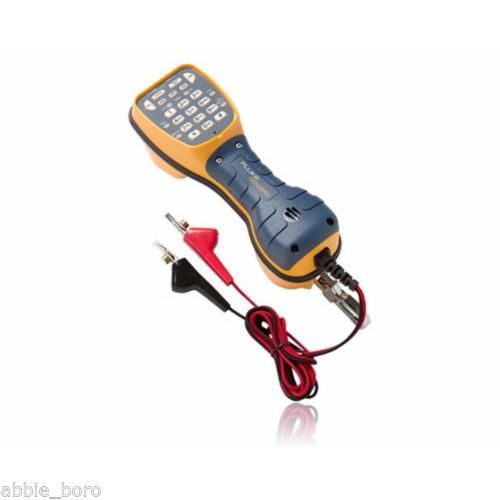

New in box - never opened. This is the rare PRO model.  Best Internet price is $354.  With PP Clips The Fluke Networks TS44 Pro telephone test set, with piercing pin cord, detects dial tone and polarity; places and receives calls; indicates line voltage and low loop current; has a one-way speaker for hands-free listening and a two-way speakerphone for hands-free conversation during testing; tests POTS (plain old telephone service) quality on live DSL lines without disrupting data services; and stores up to ten 23-digit telephone numbers which can be speed-dialed via the keypad. It provides tone or pulse operation. The test set has two basic modes of operation: talk mode for off-hook operations including verifying dialing and receiving calls, and monitor mode for on-hook operations including checking for an idle line, listening for line noise, and measuring DC voltage on the line. In monitor mode, the test set provides high-impedance monitoring of lines without disrupting service. When switching to talk mode, the data lockout feature tests the line for high-speed data signals and remains on hook and beeps if such signals are detected. The lockout can be overridden to pull dial tone from a noise line. This test set passes a 20-foot (6 m) drop test and has a waterproof case that exceeds American Military Specification MIL-STD-810E. The keypad has 12 standard dialing keys including star and pound, and function keys to store, recall, and redial numbers and to pause for accessing a second dial tone when dialing through a PBX (private branch exchange), among other functions. LEDs on the unit indicate line polarity when off hook, normal or low (below 23 mA) loop current, five different ranges of voltage detected, mute, and battery status. At a voltage greater than 140 VDC, the test set locks out and will not allow off-hook operation. The current LED flashes for 5 seconds to indicate a reading below 23 mA and remains solid for normal readings. The test set is made of high-impact plastic. A spring-loaded belt clip at the base of the unit provides a secure hold on belt loops and D-rings. Additional specifications include various environmental operating conditions. Telephone test sets, also called butt sets, are used by telecom technicians to troubleshoot and maintain copper-wire voice-subscriber lines such as POTS (plain old telephone service) lines. Specifications Line current range Off-hook: 10 to 100 mA DC resistance Off-hook: 150 ? (nominal); on-hook: greater than 3 M? AC impedance Off-hook: 600 ? (nominal), 300 to 3400 Hz; on-hook: greater than 120 k?, 300 to 3400 Hz Rotary dial pulse rate 10 + or – 1 pulses per second DTMF (dual-tone multi-frequency) tone frequency error + or – 1.5% maximum Memory capacity Ten 23-digit speed-dial numbers, one redial number Power source Shared line power; 9V alkaline battery (included) for test set when on-hook and for speaker when off-hook Dimensions 254 x 96 x 107 mm/10 x 3.75 x 4.25 in (H x W x D) Weight 0.68 kg/1.5 lb *H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Datacom and telecom installation and test devices, such as toners and test sets, check cabling and wiring to help ensure proper connections and operation. Tone generator and probe sets, also called toners, are used to locate, trace, and isolate cables in copper media networks. Telephone test sets, also called butt sets, are specialized telephones that connect to telephone lines to check for proper operation and to isolate trouble. Some test sets incorporate a TDR (time-domain reflectometer) and toner for determining cable length and locating faults. While certain devices may be used on live networks, others are only suitable for inactive networks. Field technicians and installers use these devices to set up, maintain, and troubleshoot datacom and telecom cabling within a building or in outside plant (OSP) applications. What's in the Box? Fluke Networks TS44 Pro telephone test set Test leads with Angled Bed-of-Nails and Piercing Pin Clips 9V battery Instructions
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Fluke
MPN 50801001
Model TS 44
