Belden 89269. Rg 62 Plenum Rated Cable. 1100' Reel.

US $700.00

New York, New York, United States
Jan 29th

Open on mobile:
QR code

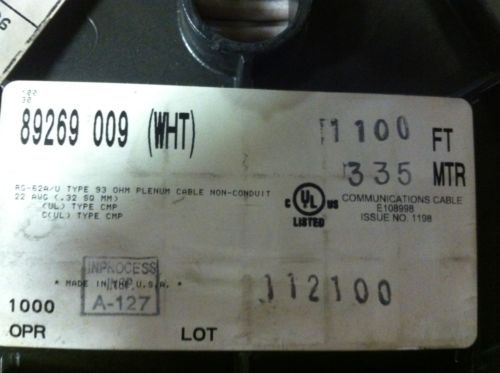

You are bidding on a 1100' reel of Belden 89269. This cable is Plenum rated RG 62/U. General Description: RG-62/U type, 22 AWG solid .025" bare copper-covered steel conductor, plenum, semi-solid FEP insulation, bare copper braid shield (94% coverage), FEP jacket. Physical Characteristics (Overall) Conductor AWG: # Coax AWG Stranding Conductor Material Dia. (in.) 1 22 Solid BCCS - Bare Copper Covered Steel .025 Total Number of Conductors: 1 Insulation Insulation Material: Insulation Trade Name Insulation Material Wall Thickness (in.) Dia. (in.) Teflon® Semi-Solid FEP - Semi-Solid Fluorinated Ethylene-Propylene 0.019 0.142 Outer Shield Outer Shield Material: Type Outer Shield Material Coverage (%) Braid BC - Bare Copper 94 Outer Jacket Outer Jacket Material: Outer Jacket Material Nom. Wall Thickness (in.) FEP - Fluorinated Ethylene Propylene 0.015 Overall Cable Overall Nominal Diameter: 0.200 in. Mechanical Characteristics (Overall) Operating Temperature Range: -70°C To +200°C UL Temperature Rating: 200°C Bulk Cable Weight: 33 lbs/1000 ft. Max. Recommended Pulling Tension: 84 lbs. Min. Bend Radius/Minor Axis: 2 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CMP CEC/C(UL) Specification: CMP EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: No EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005 Page 1 of 3 10-30-2013 Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 89269 Coax - 93 Ohm CoaxEU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes RG Type: 62/U Flame Test UL Flame Test: NFPA 262 CSA Flame Test: FT6 Suitability Suitability - Indoor: Yes Suitability - Outdoor: Yes Suitability - Burial: Yes Plenum/Non-Plenum Plenum (Y/N): Yes Non-Plenum Number: 9269 Electrical Characteristics (Overall) Nom. Characteristic Impedance: Impedance (Ohm) 93 Nom. Inductance: Inductance (µH/ft) 0.111 Nom. Capacitance Conductor to Shield: Capacitance (pF/ft) 12.8 Nominal Velocity of Propagation: VP (%) 85 Nominal Delay: Delay (ns/ft) 1.197 Nom. Conductor DC Resistance: DCR @ 20°C (Ohm/1000 ft) 41.2 Nominal Outer Shield DC Resistance: DCR @ 20°C (Ohm/1000 ft) 3.4 Nom. Attenuation: Freq. (MHz) Attenuation (dB/100 ft.) 1 0.3 10 0.9 50 1.9 100 2.7 200 3.8 400 5.3 700 7.3 900 8.2 1000 8.7 Max. Operating Voltage - UL: Page 2 of 3 10-30-2013 Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 89269 Coax - 93 Ohm CoaxVoltage 300 V RMS Notes (Overall) Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc Please note that sales tax will be added to the following states: AZ, AR, CA, CO, CT, FL, GA, ME, MD, MN, NE, NV, NJ, NY, OH, PA, SD, TX

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Belden
Country of Manufacture	United States
MPN	89269
