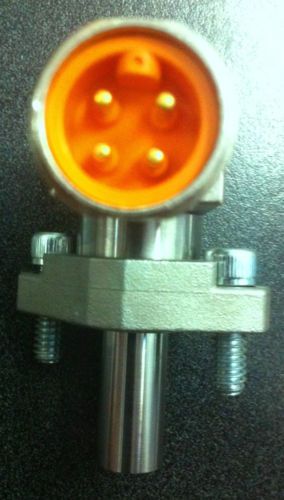

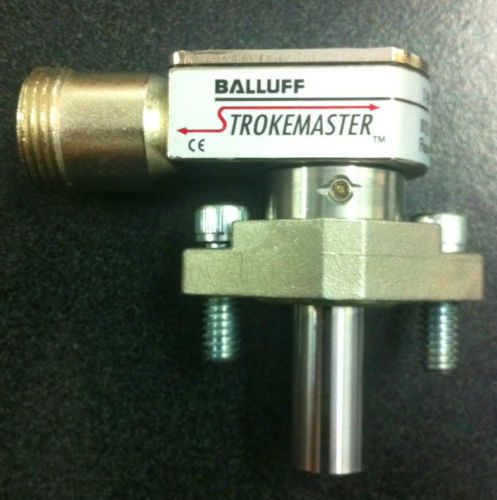

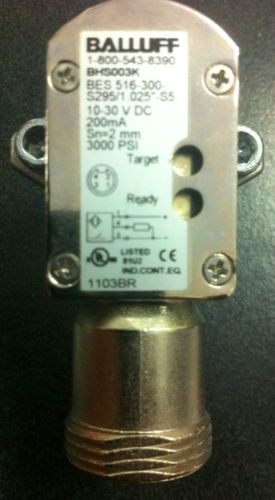

Balluff Inductive Sensor Bhs003k

US $120.00

  • Hidalgo, Texas, United States
  • Jan 29th
Open on mobile:
QR code
BES 516-300-S295/1.025"-S4 Ordering code: BHS003J Inductive sensor Strokemaster D12.7 mm L = 1.025" ±0.005" (26.04) DC, direct current PNP/Normally open (NO) Sn= 2 mm Flush (shielded) Characteristic data Assured operating distance Sa 1,6 Eff. switching distance Sr 2,00 mm Tolerance Sr ±10 % Hysteresis H max. (in % of Sr) 15 % Repeat accur. R max. (% of Sr) 5 % Ambient temperature -25...70 °C Temp. drift max. (% of Sr) 10% Switching freq. f max. 10 Hz Ready delay tv max. 40 ms Utilisation category DC 13 Function indicator Yes Power indicator Yes Short-circuit protected Yes Protected against polarity reversal Yes Protected against miswiring Yes Magnetic field immune immune to magnetic DC and AC fields Enclosure Type per IEC 60529 IP67 Electrical data Operating voltage 10...30 V DC Ripple max. (% of Ue) 15 Rated operating voltage Ue DC 24,0 V Voltage drop static max. 2,5 V Rated insulation voltage Ui 75 DC Effective operating current Ie 200 mA No-load current Io damped max. 18 mA Max. no-load cur. Io undamped 10 mA Off-state current Ir max. 80 ?A Minimum operating current Im 0 mA Rated short circuit current 100 A Output resistance Ra 33.0k + D Load capacitance max. (at Ue) 1 ?F Magnetic field strength 100 kA/m Mechanical data Connection type Connector Connector type M12x1-S04 Housing material 1.4104 / GD-ZnAl Oberflachenschutz Nickel-plated Sensing surface material Ceramic Sealing ring material FPM 90 Pressure resistance oilpressure-rated to 3000 psi Size sealing ring 17.13 x 2.62 Shock rating Shock, half-sinus, 30 gn, 11ms Vibration rating 55 Hz, 1 mm ampl., 3x30 min Degree of contamination 3 Basic data Basic standard IEC 60947-5-2 Scope of delivery 2 x hexagon socket screw UNC 1/4"- 20x 3/4" - 12.9 1 x O-ring ?17.13 x 2.62 Part number sealing ring 116143 The item missing the original packaging.
Condition:
New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...
Model BES 516-300-S295/1.025"-S5
Brand Balluff
