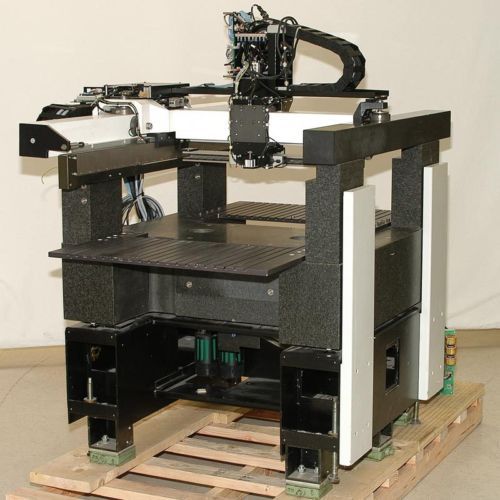

Air Bearing Granite Base Elevated Gantry Xy Stage 110cm X 50cm W/ironless Motors

US $3,499.99

Leander, Texas, United States
Jan 30th

Open on mobile:
QR code

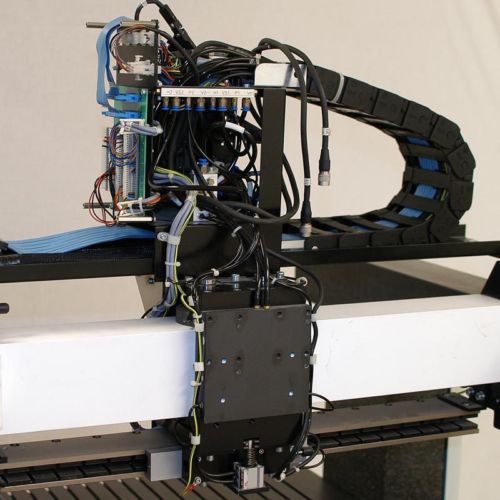

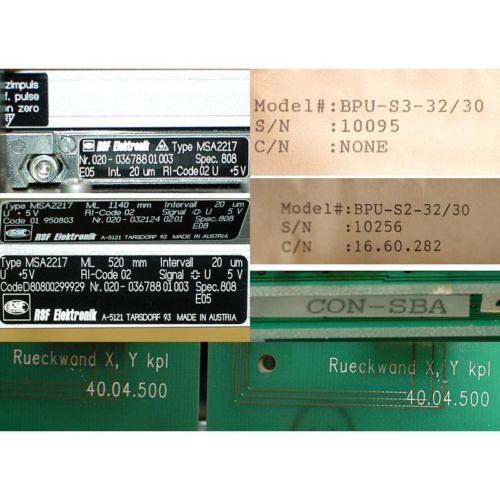

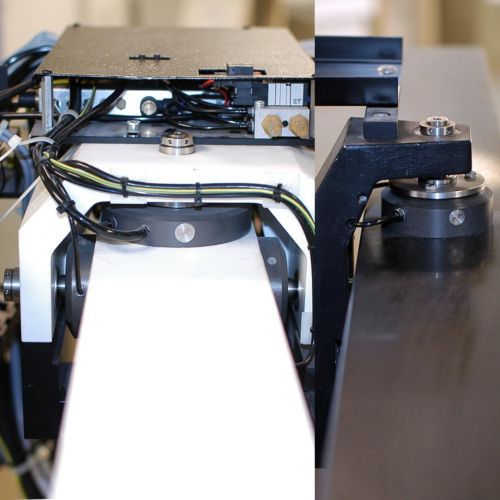

Home Contact About Questions? Call us: 1-877-328-9236 Technology Industrial Lab & Test Electrical Semiconductor Air Bearing Granite Base Elevated Gantry XY Stage 110cm x 50cm w/Ironless Motors Full Size Manufacturer: Universal Instruments Model: Unknown Condition: Used The photos show the exact item(s) the buyer will receive. Manufacturer: Universal Instruments Condition: Used. This was part of an inspection cell which was incomplete when it came to us. We were able to get the drives for the ironless motors, but the controller and the item used to connect to the encoders is gone. There are lots of cables left over in the cable management conduits, in case you want to reuse them. This item weighs well over a ton; prepare to have a suitably strong floor to hold it at your facility. Please NOTE: we are not sure of the exact travel range of each axis because we are not equipped to make the stage move. Notes: When we put air to the hose leading to one section of bearings, the bearings changed from "impossible to move", to "can be turned a little by hand". It looks like there are some tiny little pneumatic brakes that need to be released, plus we don't have a super-clean lab quality air supply so no further testing was done. No manuals, cords/cables, or additional items are included if not listed or shown. Included: (1) Elevated gantry air-bearing X/Y Stage (1) Western Servo motor drive chassis with BPU drives Miscellaneous cables and air hoses Specifications: Manufacturer: Universal Instruments Granite-base, air-bearing X/Y stage Elevated gantry type Polished black & white stone bearing surfaces 11 air bearings total Ironless motors with Western Servo drives RSF Elektronik type MSA2217 5V 20um Linear Encoders Rollers under rails prevent over-lifting Encoder measuring length (max. possible travel): 1140mm & 520mm Narrowest opening on long axis: 72cm Black granite base is shaped like an "H" 99cm square x 26cm thick Crossbeam on "H" has 2x 82mm through-holes and several threaded inserts Actual stage platform is vertical, 13x12.5cm Aluminum tables bolted to base have parallel dovetails for mounting your equipment Black rail: 10x10x116cm White long rail: 10.5x10.5x140cm White cross rail: 7.5x10x67cm (clear central portion) SKU: n47d011 For questions regarding this item, please reference the SKU to help us better serve you. Questions? Give us a call. (877) 328-9236 or (512) 933-0081 Monday to Friday 8:30 am - 5:30 pm CST. Se habla espanol! DougDeals is an ISO 14001 and OHSAS 18001 registered company. DougDeals Terms and Conditions DougDeals Terms of Use By bidding, purchasing via Buy-It-Now or submitting a Best Offer you agree to the DougDeals terms of use located at: http://stores.ebay.com/CDN-Systems-LLP/Terms-and-Conditions.html Payment Paypal Orders are shipped to the confirmed PayPal address. DougDeals accepts PayPal from select countries. Visa, Mastercard, Discover, American Express Orders are shipped to the card holder’s billing address. A signed Credit Card Authorization form is required for orders over $1,000. DougDeals directly accepts US and Canadian issued credit cards only. DougDeals accepts international cards via PayPal. Orders shipped to Texas will incur State Sales Tax at a rate of 7.25%. Shipping This item will be shipped on a pallet via LTL Freight. Please fill out this form to receive a shipping quote. Buyer pays for all shipping costs. This cost includes professional packing & insurance. Handling time is two to three business days after receiving cleared payment. Transit time varies. Please contact us for details. DougDeals does not ship on buyer accounts or allow the buyer to arrange shipping. Local pick up is available for buyers and their direct employees. Warranty This item is guaranteed to be as described. The buyer must notify us within 14 days of receipt if there is an issue. Returns for any reason other than defects not described incur a 15% restocking fee. If an item is returned defective but tests functional the refund will be for the item price minus any actual shipping costs, minus a 15% restocking fee. See full terms here. Feedback Customer satisfaction and feedback are very important to us. If for any reason you feel we deserve less than a 5 star rating, please contact us to let us know how we can improve our service. Legal DougDeals reserves the right to refuse service to anyone that does not comply with the terms listed and linked here. The sole and exclusive venue for any lawsuit arising out of or relating to this agreement shall be the Travis County Civil Courts of Travis County, Texas.
