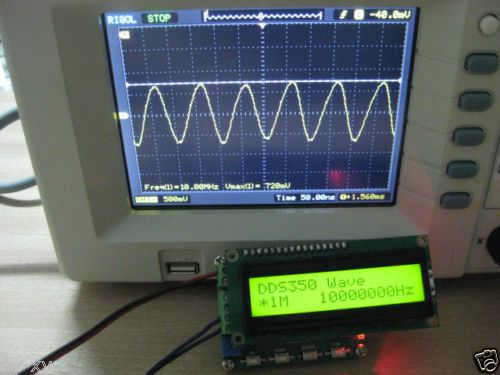

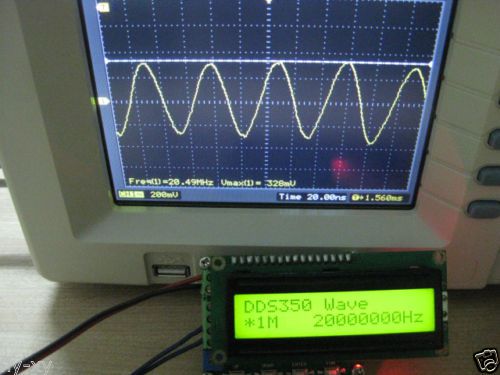

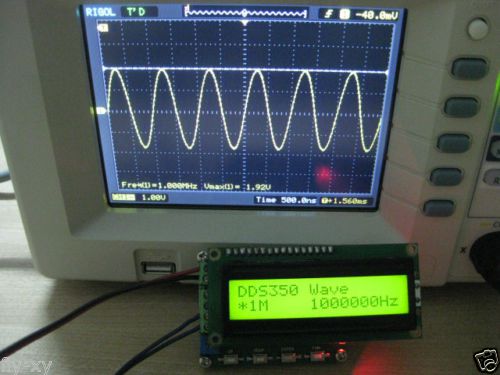

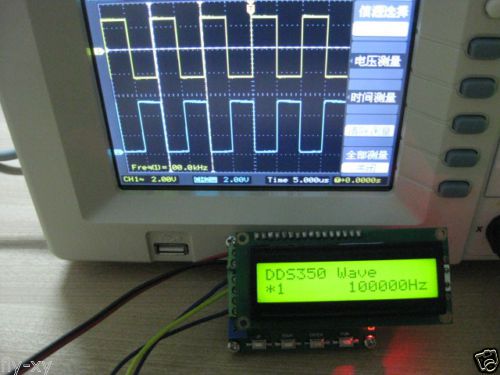

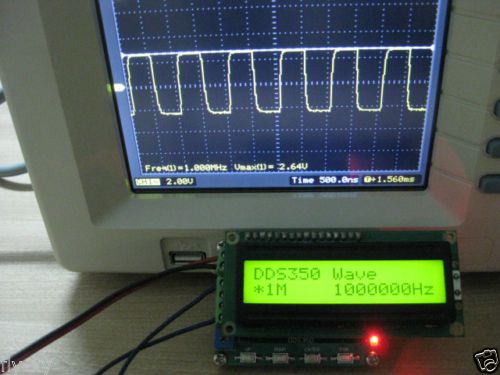

AD9850 0 ~ 20M DDS Signal source Generator Sine wave AD9850 0 ~ 20M DDS Signal source Generator Sine wave Description: overview : DDS350 is a small signal generator can produce a maximum 20MHz sine wave signal , the output amplitude is adjustable. The module is easy to use, the frequency of the data input by key operation , update immediately output frequency, three-way signal output. product applications: ? signal generator ; ? instrument calibration ; technical parameters: A signal channels 3 channels are: sine wave ; positive pulse ; contrast pulse 2 range of 10 ~ 20000000 Hz sine wave 3 pulse signal range 1 ~ 2000000 Hz 50% duty cycle pulse signal 4 sine wave amplitude 0 ~ 4 VDC most significant 4.0Vpp ( output amplitude is adjustable ) 5 5 VDC pulse signal amplitude maximum amplitude 5.0Vp ( constant output amplitude ) 6 7 ~ 9 VDC operating voltage 7 working current <170 mA 8 Operating temperature -40 °C ~ 65 °C Celsius 9 Storage temperature -40 °C ~ 65 °C Celsius 10 Size 57 * 45 * 20 mm Length X Width X Height interface description and related operations P1 connector ( power supply ) VDD: positive power supply (7 ~ 9V) GND: power negative P4 interface ( output signal ) HN: Instead pulse signal HP: positive pulse signal SIN: Sine Signal GND: power negative Potentiometer RV1 is adjusted sinusoidal signal amplitude. KEYS UP: from plus key DOWN: decrement key ENTER: Select the operation setting data bits FUN: save the data set , the next boot automatically loaded. Package list: One Meter We only accept Paypal in Ebay. If you want to pay via other method please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to biding. Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. Delivery time depends on destination and other factors, it may takes up to 30 business days. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding! If the item is defective, please let me know as soon as possible after receive the items. The item will be returned its original condition, in order to get it refunded and replaced (please inquire us the returning address before you ship it back.) . Buyer is responsible for shipping costs when shipping products. You feedback is very important to us, please let us know before leaving any negative feedback or open any disputes on Paypal, please give me an opportunity to resolve any problems and we will try our best to satisfy your requirement. On Sep-21-14 at 09:26:41 PDT, seller added the following information:
