Ad584 4-channel 2.5v/7.5v/5v/10v High Precision Voltage Reference Module Ad584l

US $8.50

???, ???, China
Jun 9th

Open on mobile:
QR code

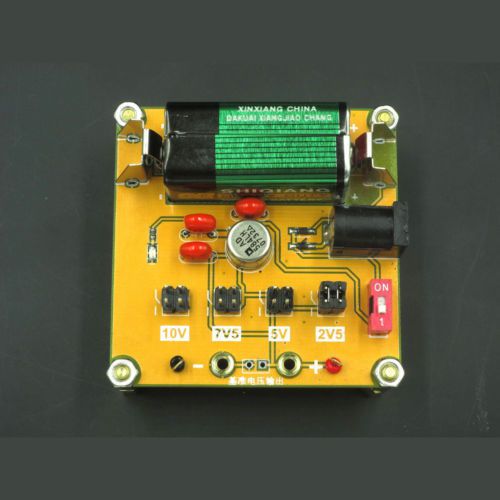

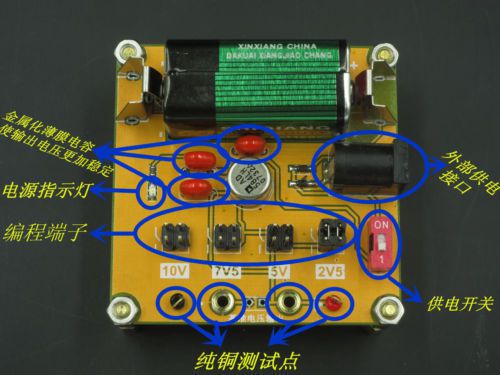

AD584 4-Channel 2.5v/7.5v/5v/10v High Precision Voltage Reference Module Features 100% Brand new and high quality AD584 Introduction: AD584 is an eight-pin precision voltage reference, a programmable four common output voltages: 10.000 V, 7.500 V, 5.000 V and 2.500 V. Input voltage range of 4.5 V to 30 V. The device uses laser wafer trimming technology to adjust the pin-programmable output levels and temperature coefficients, so as to obtain the most flexible single-chip, high-precision reference voltage source. AD584 is recommended as an external precision reference voltage source of 12 or 14 bit digital to analog (DAC) / analog to digital (ADC) converter reference voltage source, and its performance is usually better than the standard stand-alone reference. There are AD584J, AD584K, AD584L on the market. AD584L is the best performance, see below, with our board is AD584L Board Features: 1. onboard 15V battery, we know that the battery is the lowest noise so that it can output pristine, stable voltage to provide a reliable guarantee 2. The board has four programming terminals ,each corresponding to an output voltage, short circuit by short-circuiting the corresponding terminal block to give the corresponding voltage. Because the AD584 programming pins in programming its short resistance will affect the output voltage, in order to reduce the short-circuit resistance, two terminals in parallel. Alternative switch terminal benefits are more reliable and flexible, short-circuit resistance can be smaller. 3. Temperature coefficient: 5 ppm / ° C (maximum, 0 ° C to 70 ° C, AD584L) 15 ppm / ° C (maximum, -55 ° C to + 125 ° C, AD584T) 4. Power Consumption: Static current: 1 mA (max), low quiescent current is ideal for battery-powered. 5. Load capacity: 10 mA 6. Operating voltage: 4.5V to 30V, note that the required operating voltage higher than the programmed output voltage 7. Temperature range: AD584J / K / L rated operating temperature range of 0 ° C to + 70 ° C, AD584S / T, with -55 ° C to + 125 ° C. 8. The external power supply interface, you need more than 11V DC voltage 9. The reference voltage output interface with copper 2mm test socket for easy card into the pen multimeter to measure or calibrate other instruments. 10. Each board at the factory to be detected with Aglient 6 digit multimeter, and marked with the output voltage, user-friendly. 11. Before detect multimeter and board warm-up at least 30 minutes at room temperature 25 degrees, to ensure that the detection accuracy. The following are six and a half Agilent multimeter measured 2.5V voltage output effect, 2.49978V and standard error is small. Package Contents 100% Brand New 1x AD584 4-Channel 2.5v/7.5v/5v/10v High Precision Voltage Reference Module We only accept Paypal in Ebay. If you want to pay via other method please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to biding Item will be shipped within 24 hours on payment received from Hong Kong using Airmail. Delivery time depends on destination and other factors, it may takes up to 30 business days. Optionally, Express Shipments with tracking service via EMS/DHL/UPS with a quoted delivery time of 5 to 7 business days is also available Here is the estimated time for your reference only: The delivery time may vary due to public holidays, countries, and customs etc. Thanks for your understanding You feedback is very important to us, please let us know before leaving any negative feedback or open any disputes on Paypal, please give me an opportunity to resolve any problems and we will try our best to satisfy your requirement. If the item is defective, please let me know as soon as possible after receive the items. The item will be returned its original condition, in order to get it refunded and replaced (please inquire us the returning address before you ship it back.) . Buyer is responsible for shipping costs when shipping products.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Does Not Apply
MPN	Does Not Apply
