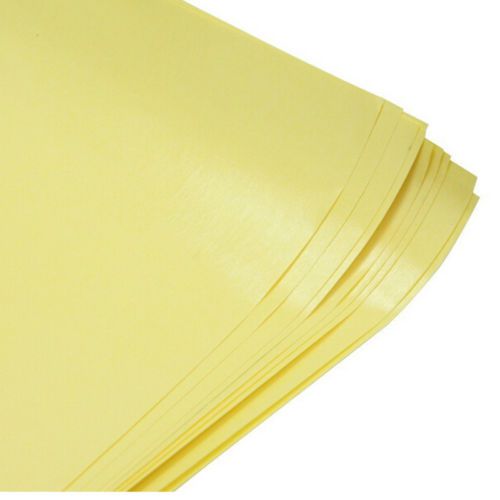

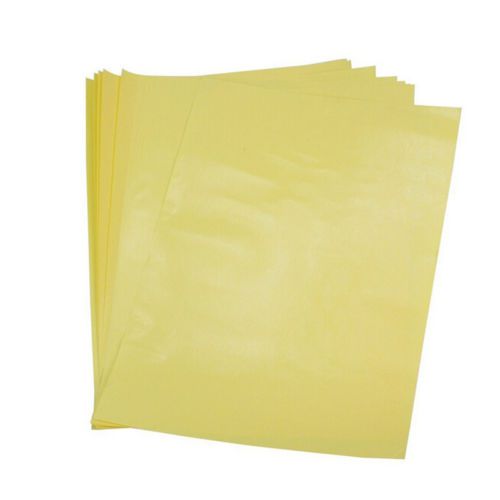

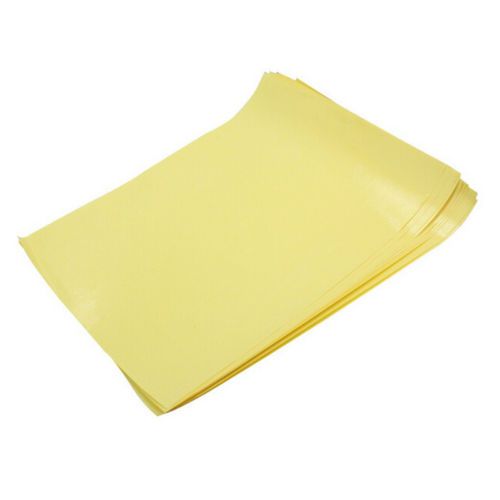

A4 Sheets Heat Toner Transfer Paper Diy Pcb Electronic Prototype Popular Tb Ca

C $2.75

HK, China
Jun 9th

Open on mobile:
QR code

Description Features: Brand new and high quality. Note: You can use the laser printer! Can not use inkjet printer. Remove the white paper, laser printer (or copier) to the PCB map, hit the smooth side, apply to the copper, and iron into the machine or rapid transfer to plate. DIY Transfer Paper (fan-made high-precision electronic circuit board must have the material). Heat produced by the circuit board renderings:. Feature. Heat transfer law making circuit boards, circuit board is drawn graphics, laser printers print in thermal transfer paper, transfer paper and then covered in Bonded Copper, after heating, the melting of the toner completely adsorbed on the deposited copper, and other cool tear off transfer paper, you can see the graphics board has to transfer to the Bonded Copper on the black anti-corrosion layers, that is, we want to map the PCB, and finally to corrosion, and that we want to obtain the PCB board. The process of making iron tools used in heating or over-presses. We serve the transfer paper for the production of circuit boards dedicated thermal transfer paper, with its production of circuit board has the following advantages:. 1 plate with high precision. 2, plate cost. 3, plate-making speed. 4, can produce double-sided. Usage:1 circuit board with a laser printer to print to the circuit diagram of the smooth thermal transfer paper. 2Raised with the laminator between 150-180 degrees Celsius, the heat transfer printed circuit side of the paper deposited in the Bonded Copper on the transfer; the system can also be used instead of iron plate machine, hand transfer. 3 Remove the transfer paper after printing, the Bonded into the ferric chloride solution to corrosion. 4 Finally, remove the circuit board using toner. Package Included: 10 X Heat Toner Transfer Paper Preview On 05-Sep-15 at 12:43:23 EDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	Dose not apply
Brand	Unbrand
MPN	Dose not apply
Type	A4 Sheets Heat Toner Transfer Paper
Country/Region of Manufacture	Hong Kong
Plackage Include	10 pcs
