5 Solid Brass Pipe To Tube Adapter Flare Pipe 1/8 Npt To 45 Degree Tubing New

US $9.50

  • Warren, Michigan, United States
  • Jan 30th

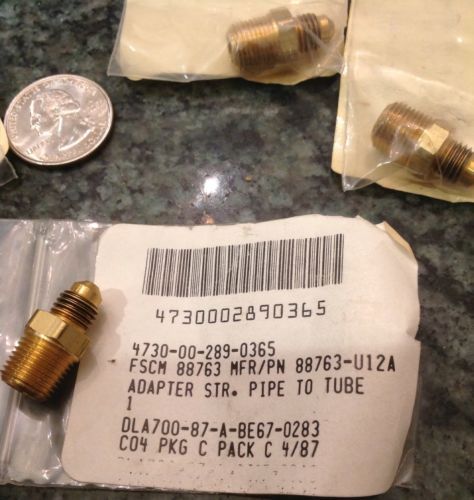

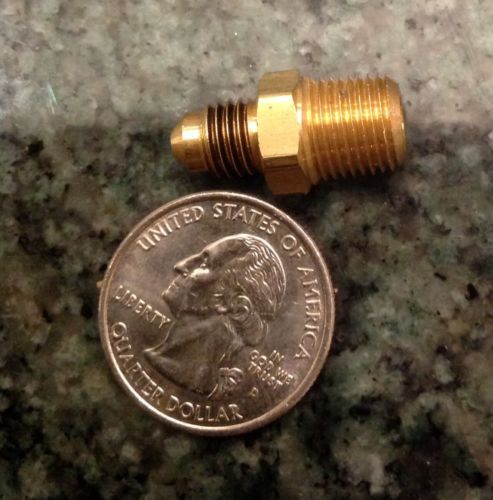

14BK707 up for sale is a group of 5 new brass 1/8 NPT to tapered 45 degree flare copper tube , see additional specs below,Made for a military application under NSN 4730-00-289-0365 , p/n 88763-U12A  This unit has a 0.433 hex x 0.898 long the 1/8 NPT end is 0.400 OD the other tapered end is 0.308 over the thread , covered under other part numbers J513 SAEJ513 U1-2A , Buyer to pay calculated shipping and packing to your locations, see our store for more items like this click below, we will work with you to save on shipping for multiple item purchases, Thank you RWK Check out my other items! Stores 2013274 DS J SMS EA 65 A U 0 N I Characteristics (Decoded) MRC REQUIREMENT STATEMENT CLEAR TEXT REPLY NAME ITEM NAME ADAPTER,STRAIGHT,PIPE TO TUBE AAAR NOMINAL PIPE SIZE ACCOMMODATED 0.125 INCHES 2ND END AAJD THREAD CLASS 2A 1ST END AHNC CONNECTION STYLE FLARED (TUBE) 1ST END AHNC CONNECTION STYLE PLAIN (PIPE) 2ND END AWLS CONNECTION TYPE THREADED EXTERNAL TUBE 1ST END AWLS CONNECTION TYPE THREADED INTERNAL PIPE 2ND END CQJX NOMINAL THREAD SIZE 0.500 INCHES 1ST END CQJX NOMINAL THREAD SIZE 0.125 INCHES 2ND END CQRB SEAT ANGLE 45.0 DEGREES 1ST END CWFD NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.312 INCHES 1ST END CWFR NOMINAL OVERALL LENGTH 1.062 INCHES MATT MATERIAL COPPER ALLOY 11 OVERALL MDCL MATERIAL DOCUMENT AND CLASSIFICATION QQ-B-613,COMP 11 FED SPEC SINGLE MATERIAL RESPONSE OVERALL THSD THREAD SERIES DESIGNATOR UNF 1ST END THSD THREAD SERIES DESIGNATOR NPTF 2ND END ZZZK SPECIFICATION/STANDARD DATA 81343-SAE STD J513 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD ZZZT NONDEFINITIVE SPEC/STD DATA 1 FIGURE AND 1 TABLE
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
MPN 4730-00-289-0365 88763-U12A U1-2A SAEJ513 J513
