400w Cnc Air-cooled Spindle Motor Pwm Speed Controller Power Supply Mountbracket

US $5600

Shenzhen, China
Mar 5th

Open on mobile:
QR code

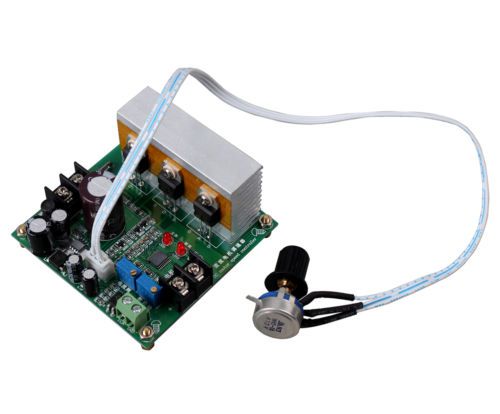

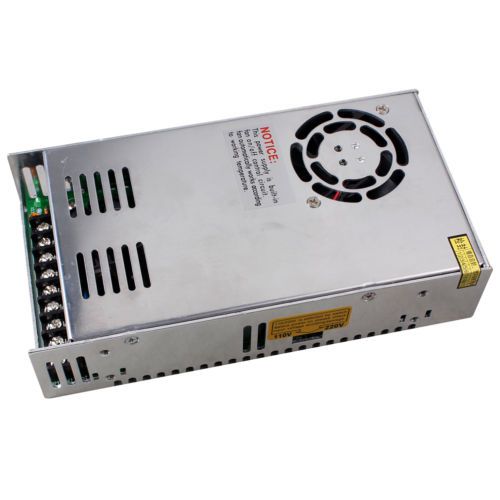

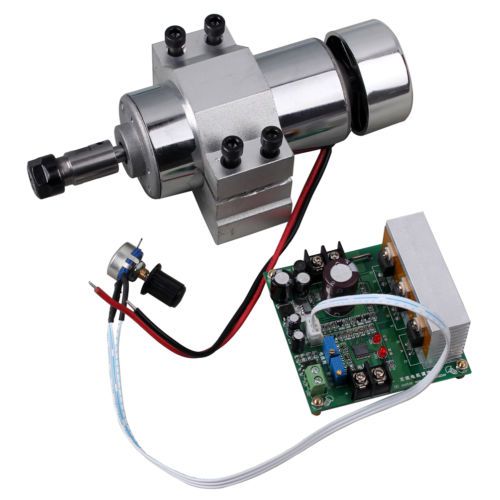

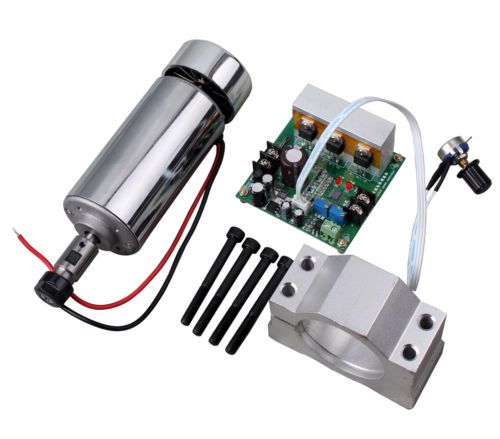

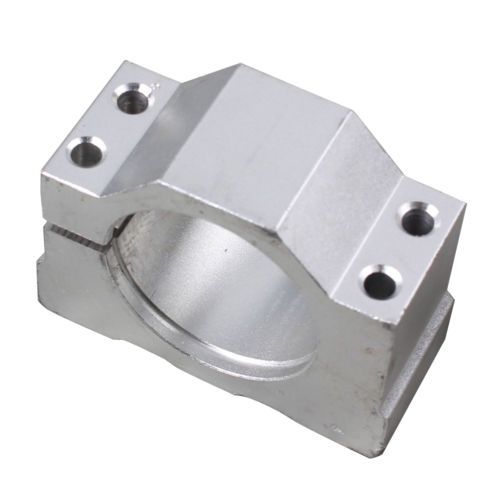

new_template 400W CNC 12V-48V DC Air-cooled Spindle Motor Kit PWM Speed Controller Power Supply Mount Bracket for Engraving CNC Spindle motor: Can be used for engraving metal or nonmetal materials. Weight :0.9kg ER11 collect: 3.175mm Repeat accuracy: 0.01-0.03mm Diameter of Axis collect holder:16mm Axis collet Length: 35mm Diameter:52mm Motor Overall length: 186mm (includes gripping parts and motor) Dielectric strength:400V Insulation resistance:>2Megohm Torque:500mN.m Power: 400W Rotation speed: 3000-12000r/min Work voltage: 12-48VDC PMW Speed Controller: Applies to DC12-60V low voltage permanent magnet brushed DC motor Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V) Size :75mm x 75mm x 42mm Support Mach3 Control Mode: Default potentiometer control (5K-100K),defaults 10K; MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control. Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift). soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable. Control power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W Pulse width modulation range: 0% -100% Mount Bracket: Diameter:52mm Suit for :400W Brushless High-speed Air-cooled PCB Spindle Motor Weight : 410g Power Supply : Size: 215 x 115 x 50mm Power Weight: 0.9KG Output power: 400W Output voltage: DC48V Input voltage: AC110/220V 50/60HZ 1 x 400W Spindle Motor 1 x PWM Speed Controller 1 x Mount Bracket 4 x Screws 1 x Power Supply Shipping Item will be shipped within 2-3 business days of cleared payment via Post Airmail. We only ship to buyer's PayPal address, please confirm your address on PayPal before you bid. Registered air mail takes 10-20 business days to most Countries: US, Canada, UK, Australia and Europe. Optionally, Express Shipments with tracking service via EMS/DHL/UPS takes 5 to 10 business days. We would post the tracking number on the order page as soon as it's available. Important Note: If you have any concern about the purchase,PLEASE feel free to contact us first, we're always ready to help. Please kidly note that this is international shipping, delay happens occasionally due to unexpected cases. Any customs tax applied to the parcel should be convered by the buyer. Please remember to write your phone number which is necessary for the shipping. Payment We only accept PayPal. Payment must be made within 7 calendar days of the auction end time. Non-Paying bidders will be reported. Refund It is buyer's responsibility to contact us within 30 calendar days of receiving a defective product. Otherwise, no replacement or refund will be made. All items MUST be returned in their original condition. Buyer is responsible for shipping and proof of delivery on all returns. Engineered for professional eBay sellers! On Mar-05-15 at 01:52:48 PST, seller added the following information:

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

SKU

LF-100App
