2 Hz - 35 Khz Audio Oscilloscope C51 Simple Oscilloscope

US $3100

??, ???, China
Jun 9th

Open on mobile:
QR code

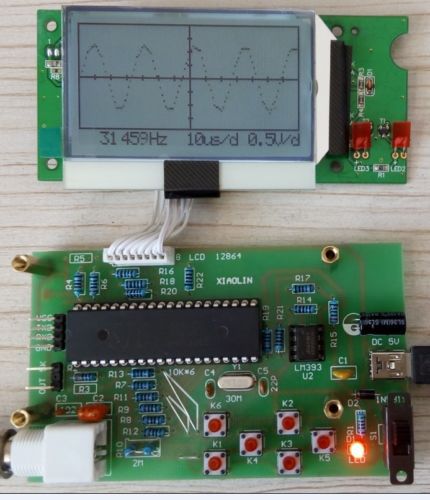

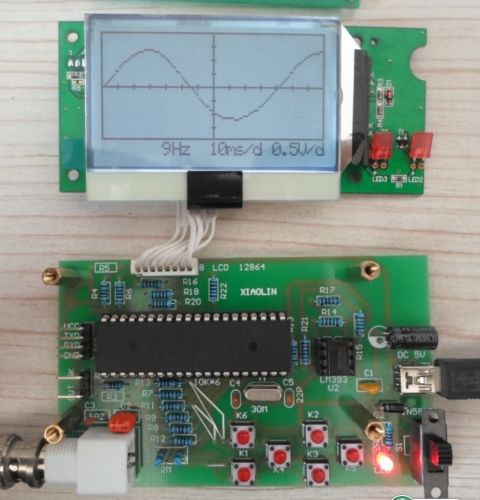

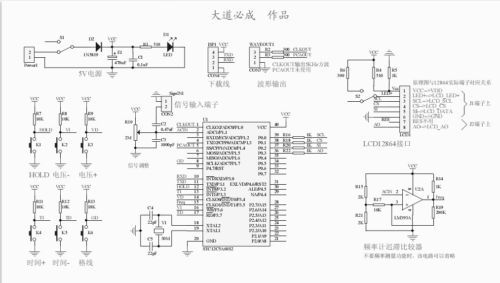

2 hz - 35 KHZ audio oscilloscope C51 simple oscilloscope Product use: One, the system structure STC12C5A60S2 MCU internal AD sampling; LCD12864 display waveform; The LM393 of hysteresis comparator measured small signal frequency, To simplify the design, to the greatest extent through capacitance directly into the MCU AD input signal, there is no input, by adjusting the R10 waveform in the centerline location. Second, the basic functions 1, per time: 10 5 ms/ms/ms/ma / 1, 2, 500 us 200 us / 100 / us/us / 20 us 50. Basic can show 20 ~ 20 kh signal. 2, the voltage of each cell: 1 V / 0.5 V / 0.2 V. About 3, HOLD the function: after freeze waveform, translation can show a total of 4 screen (including the current screen) waveform. 4, take 5 KHZ square wave output all the way. 5, power to keep users to set parameters. The function of the power supply voltage stability the demand is higher, under voltage or over voltage parameters will be washed away or not boot properly. Third, directions for use 1, K6 keys, grid line style transformation: (1) the scatter and grid line, the style reference from the previous teacher wu DIY series oscilloscope display style; (2) only grid line; (3) blank. Three kinds of style switch in turn. 2, K1 key, waveform freezing and normal display switch. Waveform frozen state, the lower left corner shows that local frequency will show HOLD MODE. 3, K2 / K3, each grid voltage adjustment, 1 V / 0.5 V / 0.2 V switch in turn. 4, K4 / K5, normal display, adjust per time; Waveform after freezing, the realization of waveform translation. So under the waveform frozen can't be adjust time! Delivery Quantity :1 pcs Payment Policy: We ONLY accepted PayPal payment. We will ship to the shown address on you PAYPAL Payment notice, Please confirm your shipping address in the PayPal Account. If you don't have Paypal account, please sign up and learn more about paypal at: www.paypal.com. Payment must be fulfilled within 7 days since auction's ending. shipping & time: Generally, delivery time is 10-20 business days to USA, United Kingdom, Australia and 15-30 days to most other countries. Items will be shipped within 1 business day on payment received. Delivery time depends on destination and other factors, it may takes up to 30 business days. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Returns Policy: All sales come with us 14-day warranty. Return items must not be used or have any sign of abuse or intentional damage. Buyer is responsible for all return shipping charges. We reserve the right not to refund S&H when the item has been posted. Contact us: If you have any questions,Please contact with us via eBay message or our customer service e-mail. please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 - 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Feedback: Dear buyers, we appreciate your business, if you are satisfied with our service, please leave us a positive feedback . When you rate the shipping time part please take international transit into consideration. Your recognition will make us more confident to develop business and serve you better. Our goal is to make sure you are a happy buyer and pleasant shopping with us. Please email us before leaving any 1 or 2 ratings, negative feedback or open any dispute. We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. Please give us the opportunity to resolve any problem. thank you ! On Oct-05-15 at 07:38:39 PDT, seller added the following information:
