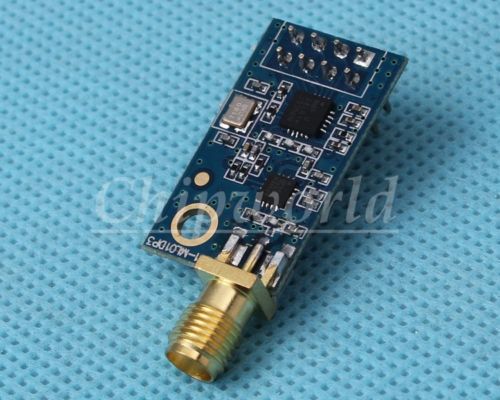

2.4G nRF24L01P+PA+LNA Wireless Transmission Module 100mW 22dBm NEW, US $8.25 – Picture 0

2.4G nRF24L01P+PA+LNA Wireless Transmission Module 100mW 22dBm NEW, US $8.25 – Picture 1

2.4G nRF24L01P+PA+LNA Wireless Transmission Module 100mW 22dBm NEW, US $8.25 – Picture 2

2.4g Nrf24l01p+pa+lna Wireless Transmission Module 100mw 22dbm New

US $8.25

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Product Name: NEW Steady 2.4G nRF24L01P+PA+LNA Wireless Transmission Module 22dBm 100mW 2.4GHz More Items In Our Store,Click Here! SKU: 4619 Parsts No. : Package: Brand: Quantity: 1 2.4G nRF24L01P+PA+LNA Wireless Transmission Module 22dBm 100mW 1. Basic information: Model: E01-ML01DP3 Center frequency: 2.4GHz measured distance: 1100m max power: 100mW component source: imported components Features: Support 1.9V minimum voltage 2.Products 3.performance parameters: Module Size:15*27mm interface method:2*4*2.54mm(can use universal board or Dupont Line) Power Supply:2.0V——3.6VDC Measured distance:1100m Communications levels:0.7VDD——5.0VDC Maximum power:20dBm Gbps:250k,1M,2M, Adjustable Emission current:95mA Sinks current:20mA Communication interface:Standard SPI mode Transceiver length:single packet:1—32 bytes,3 FIFO buffer RSSI support: Does not support the true meaning of RSSI,Only supports packet loss statistics Working temps:-30°C~+85°C Working Humidity:< 90% RH Storage Temp:-40°C~+125°C Operating frequency:2400MHz-2525MHz(1MHz step ,Through software control) Receiving Sensitivity:-102dBm 4. Pin Definitions: Name Direction Use 1 GND Ground, connected to the power ground reference 2 VCC power pin,Must be 2 - 3.6V 3 CE Input Control module pin 4 CSN Input Module chip select pin,To start a SPI communication 5 SCK Input The SPI bus clock 6 MOSI Input Module SPI data input pin 7 MISO output Module SPI data input pin 8 IRQ output Module interrupt signal output, active low 5. Circuit diagram: For more quantity, please contact me.(My skype: ada-yu2013) The Standard shipping we provide is non-regiested mail without a tracking. We provide free shipping with tracking number when your order is over $50. If your oder is below $50 and you need tracking, please contact me. Maybe you request 10Pcs 2.54mm 40Pin Single Row Right Angle Pin Header Strip new 10pcs 2x20 Pin 2.54mm Double Row Right Angle Female Pin Header new 10pcs breakable pin header 40 Pin 1x40 Male 2.54 NEW 10pcs 2.54mm Pitch Dual Row 5 x 2 ISP Download JTAG I/O Socket DIY DC3-10P New 10pcs NEW 40Pin 1*40 2.54mm 20mm Long Header Pin Male Breakable Pin Header $ 2.36 + free shipping $ 3.69 + free shipping $ 1.08 + free shipping $1.14 +free shipping $ 2.43 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkFrog Analytics
