1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 0

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 1

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 2

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 3

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 4

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 5

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 6

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 7

1HZ-100MH Sine Wave AD9854 DDS Signal Generator with software via PC * FSK BPSK, US $89.88 – Picture 8

1hz-100mh Sine Wave Ad9854 Dds Signal Generator With Software Via Pc * Fsk Bpsk

US $89.88

??, China
Jan 29th

Open on mobile:
QR code

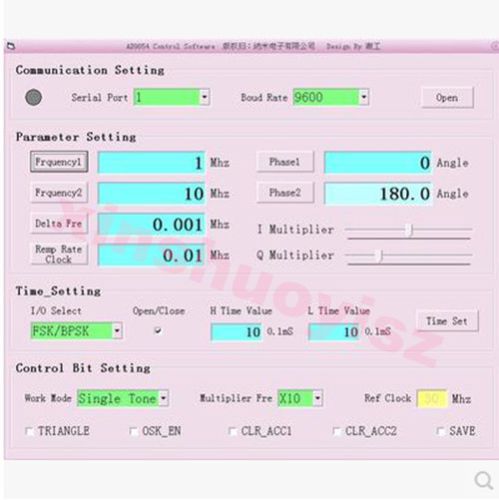

warmly welcome to our store,we do retail and wolesale,pls.shopping with confidence! any questons pls.contact us by ebay message Description Product Description: AD9854 DDS signal generator module DDS development board full-function PC control software originality! AD9854 Module DDS Module high-frequency signal source The latest version of VB PC software (Figure 3), a simple operation can be achieved Single Tone, RampFSK, FSK and Chirp, BPSK function! ! ! Advantage of the product: Difference V4, V5: optimize the line, Increase the synchronization signal source (optional terminal can be triggered by increased external signal FSK / BPSK / HOLD), Increasing the power switch, using a large heat sink design; V4 is a serial interface to facilitate external MCU control, V5 is a USB interface for easy notebook users; Special Note: Using the latest PC software control AD9854 chip to work with the MCU can fully control all registers AD9854 chips (especially on the way BIT control relevant bit is set), and the associated MCU pin, can be very intuitive and very easy to do different test, and you can test Single Tone, FSK, Ramped FSK, Chirp, BPSK and other functions, the AD9854 quickly master the application! Provide two sets of programs: a set of mainly by the PC to complete the frequency control word processing program, MCU to complete data communication. Another set of PC program to send parameters, mainly composed of MCU to complete the frequency control word processing. Features: - Output two groups of differential signaling (0, 90, 180, 270) Sine Wave that can reach highest 100Mhz, and we can adjust frequency, phase, amplitude via software on PC. In the meantime, output one group of square wave. - Designed by very experienced engineer. The output signals are BEAUTIFUL! - High power IC ensures the module works at good, stable performance. The module is also meticulously designed so keep heat at a VERY low level. This makes the module can work long time at 100Mhz. - The module comes with MCU control. Can communicate with PC or other MCU via serial interface on the module, so we can easily control output wave. - We provide software in English, as well as VB source code. So it is very helpful for VB learning. - The module can operate all functions of AD9854: Single Tone, FSK, Ramped FSK, Chirp, BPSK. - AD9854 base drive function database provided, so user can very conveniently write control program for the chip. Programe list as follows: void init_9854(void); void AD9854_phase1_adjust(unsigned int phase_value); void AD9854_phase2_adjust(unsigned int phase_value); void AD9854_frequency1_tuning_word(double frequency_value); void AD9854_frequency2_tuning_word(double frequency_value); void AD9854_delta_frequency_word(double delta_frequency_value); void AD9854_update_clock(unsigned long update_clock_value); void AD9854_ramp_rate_clock(unsigned long clock_value); void AD9854_control_bit(struct AD9854_bit control_bit_value); void AD9854_I_gain(unsigned int gain_value); void AD9854_Q_gain(unsigned int gain_value); void AD9854_shaped_keying_ramp_rate(unsigned char ramp_value); void AD9854_QDAC(unsigned int QDAC_value); Module Features: 1, the output of two sets of differential outputs (phase: 0,180,90,270), the frequency may be up to 100Mhz sine wave signal and the frequency and phase of the signal, the amplitude of the control program are available; Meanwhile a group of square wave output signal; 2, this board is a senior design engineer, the output signal is very nice, the chip circuitry handled properly can cause the formation of sawtooth wave output, the output signal jitter, distortion. 3, this module material stress, using a power supply IC, module greatly enhanced stability and reliability, but also greatly reduce the heat plate, and board design can achieve the cooling effect can be long-term stability work at 100Mhz operating frequency; use a lot of chip capacitors, the output waveform is pretty helpful, for power supply requirements greatly reduced, normal power supply can be used. 4, AD9854 all control pins are connected to the MCU (AVR) of the I / O pin, you can completely control the AD9854 chip. 5, the module with MCU control, a PC via the serial port to communicate with the MCU or other communications, to facilitate control of the output waveform AD9854. 6, providing PC-control software, and provide VB source code (the old version), to learn VB is a very useful reference. 7, module size: 72mm * 98mm 8, can achieve full functionality Single Tone AD9854 chip, FSK, Ramped FSK, Chirp, BPSK; 9, provided the underlying chip AD9854 driver functions, can be very convenient to write AD9854DDS chip control procedures. void init_9854(void); void AD9854_phase1_adjust(unsigned int phase_value); void AD9854_phase2_adjust(unsigned int phase_value); void AD9854_frequency1_tuning_word(double frequency_value); void AD9854_frequency2_tuning_word(double frequency_value); void AD9854_delta_frequency_word(double delta_frequency_value); void AD9854_update_clock(unsigned long update_clock_value); void AD9854_ramp_rate_clock(unsigned long clock_value); void AD9854_control_bit(struct AD9854_bit control_bit_value); void AD9854_I_gain(unsigned int gain_value); void AD9854_Q_gain(unsigned int gain_value); void AD9854_shaped_keying_ramp_rate(unsigned char ramp_value); void AD9854_QDAC(unsigned int QDAC_value); measured waveform of Module: 10HZ sine wave output amplitude 1V 1Mhz sine wave output amplitude 1v 10Mhz sine wave output amplitude 1v 100MHZ sine wave output amplitude over 400 mv 1Mhz square wave output amplitude 3.5v 10Mhz square wave output amplitude 3.3v Module performance parameters: 1, the working voltage and current: 5V 1A 2, the maximum output frequency: sine 100Mhz, square wave 10Mhz 3, the frequency step: 0.1HZ 4, adjustable amplitude control accuracy 12BIT adjustable. Module Applications: 1,A programmable signal source with high precision, high stability, high-frequency 2, the signal source specific signals; 3, used as a learning performance DDS module; Package Included: 1 x AD9854 DDS Board (This template does not include a power supply) 1 x SMA cable 1x USB cable MCU program source code, relevant information Payment 1. PayPal payment only. 2. Payment must be received 7 days after auction ended. Please pay for your order within 7 days. Delivery details * We ship to worldwide with tracking number . * Most of items will be dispatched within 2 working days . * We only ship to confirmed order addresses of paypal. Your address of paypal MUST MATCH your shipping address. * The images shown are for your reference only. * SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holoidays. Transit times may vary, particularly during the holiday season. * Due to stock status and time difference, we will choose to ship your item from our first available warehouse for fast delivery. * Please be advised international delivery highly depends on your local customs and post service. Terms of sales Return & Refund: 1. You have 7 days to contact us and 14 days to return it from the date it was received. If this item is in your place more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. 2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number 3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included. 4. We will bear all the shipping cost if the product(s) is (are) not as advertised. About Guarantee: 1. 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty. 2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY. About us Every item sold on eBay xinshuoyisz is 100% Authentic. Brand new (Unless the description says used), first quality, with all original parts and authentic. Original manufacturer's serial numbers intact. Not refurbished, factory seconds, or replica products. Have a 1 to 5 years warranty program FEEDBACK Please help us to stay in business by leaving us FIVE STARS eBay positive feedback! Thanks! According to eBay's assess system, please note five stars does not mean perfect but an average-above seller and five stars is a must for any eBay sellers. If you are considering giving a neutral or negative or a low DSR (4 or below), do write to us and give us an opportunity to address your concerns first. We are always stand-by to help for any questions or concerns. You will automatically receive the same one by our feedback system when you leave us a positive. Contact us Contact Us Working Day: Monday to Saturday Working Time: 9:00 am to 19:00 pm (GTM +8:00 Beijing) If anything we could help you,please feel free to contact us by ebay message.we will reply you immdiately.(within 2 hour after get your message) the other time we will reply your message with 12 hours after get yours. Attention Intellectual Property Rights Owner We endeavor to source genuine products from our suppliers. However, if you do feel that our products may infringe your trademark, patent or other intellectual property rights, please contact us first. We will respond to you and address your issue immediately. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	brand new
Type	AD9854 DDS signal generator module
Country/Region of Manufacture	China
MPN	AD9854
