1890s W.f. & John Barnes Co. Metal Working Machinery - Reprint

US $6.00

  • Mebane, North Carolina, United States
  • Jan 30th

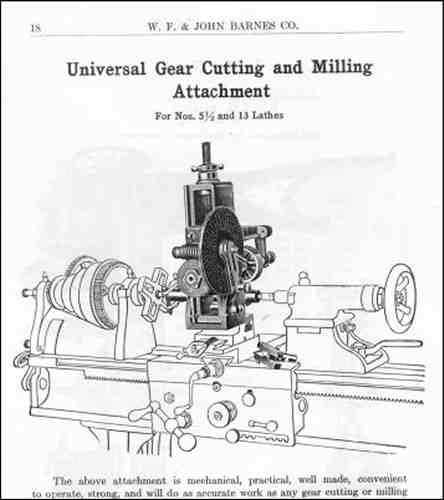

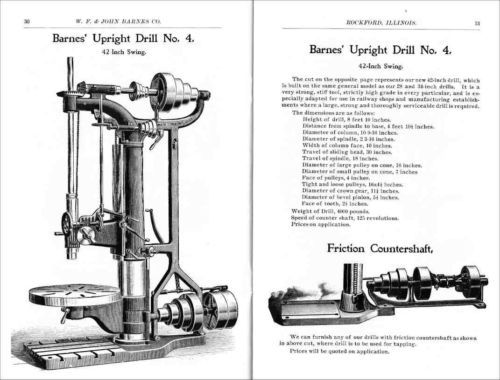

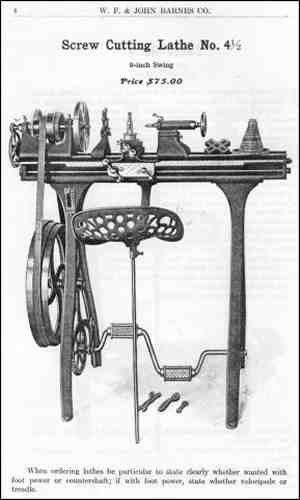

Barnes’ Metal Working Machinery . . . Foot and Steam Power . . . Price List and Descriptive Catalogue, originally published by W.F. & John Barnes Co., Rockford, IL, circa late 1890s to early 1910s. Reprinted by Lindsay Publications, Bradley, IL, 2010. 5 1/2 x 8 1/2 paperback, 48 pages, ISBN 1-55918-388-8. Please note this book is new, not used. It is a reprint, not an original. Sometime after the end of the U.S. Civil War, young John Barnes bought a threshing machine, left his home in central New York state, and began working his way from farm to farm, moving ever westward in search of profit and a place to call his own. Just when he reached the area of northern Illinois around Rockford is uncertain, but here Barnes and found employment with Emerson Talcott and Company, manufacturers of harvesting machinery, based on his previous experience as a model maker. The tediousness of carving wooden models by hand soon led Barnes to develop a foot-power woodworking scroll saw. The interest attracted by the vastly increased productivity made possible by his machine quickly convinced John Barnes to devote full time to manufacturing these foot-power tools. He soon brought his two brothers, W. F. and B. Frank, from the east, and in 1869, Barnes incorporated the business in Rockford. as W. F. and John Barnes Co. The Barnes foot-powered scroll saw quickly found favor in the building industry for turning out intricate ornaments for cornices, ornate balustrades for stairways, and other rococo decorations. While increasing production of their scroll saw, the Barnes brothers recognized the need in their own shop for other power tools - a circular saw, a foot-power wood lathe, a foot-power former and mortiser. Almost as soon as each new machine was designed, built, and put to use in the Barnes manufactory, wider commercial interest was soon generated , and so these new tools were added to the gradually expanding Barnes line for sale to other manufacturers. By the early 1880s, the Barnes brothers had also begin developing metal-working machinery, including an open-frame single-spindle drill press, a horizontal radial drill, and an adjustable screw press. Originally intended for use in their own factory, before long the tools were being also being sold to outside customers. Over a period of years, more than 70,000 drill presses were furnished to various industries. Among the early customers was Henry Ford, who ordered a Barnes drill press in 1881 for his experimental shop. In the 1920s and 1930s, the focus of the Barnes enterprise gradually shifted to its metal-working machinery, including the development – again, for their own use -- a machine which milled, drilled, tapped and faced, much like a special production machine of today. This machine was among the very first multiple operation machine tools in the world. One result was an order from the Ford Motor Company received in 1934 for what can be considered one of the first automatic progress-through or transfer type machines in major assembly line manufacturing operations. The machine was for diamond-boring cylinders in the Ford motor block to extremely close tolerances. By 1937, the focus of the Barnes company had completely shifted to automotive assembly machinery, and their production of foot-powered machinery had ceased. After World War Two, the company underwent a series of ownership changes, with the latest being the 1998 purchase by LeBlond Ltd. of Amelia, OH. What Lindsay has reprinted here is the complete catalog of Barnes’ metal working machinery. There was no date in the original (which I provided to Lindsay), but Lindsay believes it was printed in the 1890s. This catalog is full of beautiful engravings of lathes, friction disk drills, 20-inch drill with self feed and automatic stop, three-spindle drill press, grinders, lathe tools, chucks, twist drills, and more. The machines and accessories pictured and described are: Lathe No. 4, Improved Screw Cutting Lathe No. 4 1/2 Screw Cutting Lathe No. 5 Compound Rest Follower Rest Hand Rest Gap Lathe No. 5 1/2 Screw Cutting Engine Lathe No. 5 1/2 Screw Cutting Engine Lathe No. 6 New Grinding and Polishing Machine Bench Friction Drill Press Barnes’ Friction Drill Press Barnes’ Upright Drill No. 1 Barnes’ 20-inch Drill with Self Feed and Automatic Stop Barnes’ Patent Upright Drill No. 1 1/2 Barnes’ Patent Upright Drill No. 2 Barnes’ Patent Upright Drill No. 4 Barnes’ Three-Spindle Drill Barnes’ Adjustable Screw Press Barnes’ Water Emory Grinder Hand Turning Tools Chick Drills Steel Lathe Arbors Tuners’ Sizer Lathe Dogs W. Butcher’s Cast Steel Turning Chisels W. Butcher’s Cast Steel Turning Gouges Westcott’s Patent Combination Lathe Chuck Westcott’s Little Giant Drill Chuck A New Turret Head Lathe Tool Independent 4-Jaw Chuck Amateur’s Geared Scroll Chuck Amateur’s Lever Chuck Champion Scroll Chucks Champion Independent Jaw Chucks Beach Patent Drill Chuck Morse Patent Twist Drills Steel Sockets for Taper Shank Drills
Condition New other (see details) :
A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes New reproduction.
