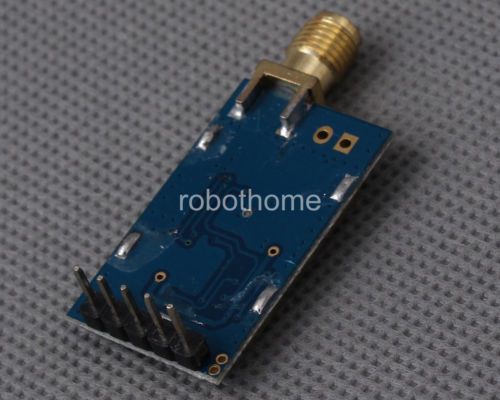

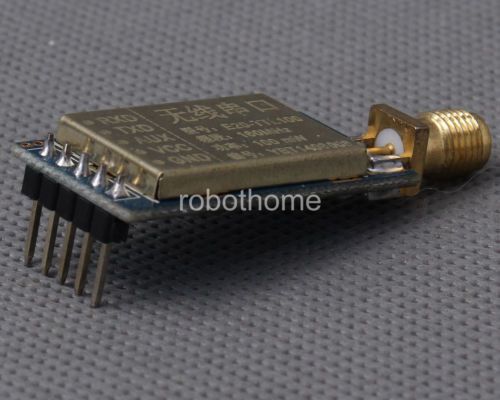

160MHz 100mW Low Power Wireless Transmission Module Wireless Serial Port Module, US $22.50 – Picture 0

160MHz 100mW Low Power Wireless Transmission Module Wireless Serial Port Module, US $22.50 – Picture 1

160MHz 100mW Low Power Wireless Transmission Module Wireless Serial Port Module, US $22.50 – Picture 2

160mhz 100mw Low Power Wireless Transmission Module Wireless Serial Port Module

US $22.50

??, ???, China
Jun 9th

Open on mobile:
QR code

Store Home New Arrivals Best Sellers Shipping Payment Feedback Store Categroy Store home Controller Raspberry Pi 3D Printers Robot Kits Sensor Servos/Motor&Driver Communication module Power DIY LCD&LEDS Relay Voice&Camera Digital Voltmeter Wholesale&Combination ICs Cables&Connectors PCB board & Breadboard Tools Component Other Industrial Automation Helpful Links Store Newsletter Add my Store to your Favorites and receive my email newsletters about new items and special promotions! General Interest Hot Products title $17.50 title $57.00 title $4.33 title $2.50 title $7.95 title $5.24 title $1.90 Stable 160MHz Low Power Wireless Transmission Module 100mW 160M 160MHz Low Power Wireless Transmission Module 100mW Wireless Serial Port Module 1.Basic information: Model:E20-TTL100 Center frequency:160MHz measured distance:1650m max power :100mW component source: imported components Features:ultra-low-power,strong penetration 2.Products: 1>. Receive mode [Transparent mode]: This time both send and receive equivalent to connect a serial cable [Command mode]: in this mode, the user can control module working state through the command mode 2>. Transmission mode [Fixed transmission]: on the same channel, transmission module support specified address, the receiver can know when the data from which a module [Radio transmission]: on the same channel, different address module can receive data, and can know the data from which a module 3>. Wireless wake Wireless module support air wake up you can set different wake-up times, so as to get different average current. 4>. Channel data monitoring If the address of the module itself set to FFFF, you can receive all the data on the channel,effectively network monitoring. 5>. Ultra low power (sleep mode) [E12-TTL100] :the standby current is 0.6uA The sleep mode, just turn off the wireless receiving function, for the serial command, wireless transmission, there is no effect, the unique algorithm, resulting in very low power of this, still can receive serial data, command settings section, about the C0 parameter setting,OPTION.7 bit is a wireless receiver function switch, If OPTION. 7 closed wireless receiving,, in addition to clear the bit accident in any other way, cannot open the radio reception. ? Module supports ultra low power receive mode, support for different power levels, corresponding to different response times. ? Module working state can be set, and enable, automatic switching and other operations, are available through the command, and according to the different needs of users, the most efficient way to choose, the highest efficiency of work. ?Sleep mode: in command mode, the module can receive the sleep command, and immediately enter sleep mode, in the ultra low power mode, can still receive serial command,can still transmit wireless data. ?The module has as many as three ways to enter the sleep mode, in any sleep mode. Canreceive any serial command, can transmit data, just turn off the wireless receiving function. 6>. Collision avoidance When multiple modules transfer data to a module,Module will be possible to avoid a collision occurs with other interference, according to the algorithm, the module will choose a communication time optimal starting point, so as toensure maximum multipoint transmission reliability. 7>. Shielding design Module has a special shield made of high quality materials,can effectively weaken the outside interference and improve receiver sensitivity, but also can reduce the module external harmonic radiation, this feature is very important in industrial applications. 8>. Baud rate Module can set a variety of communication baud rate, both sides of communication serial baud rate can be different, this will bring great flexibility, 1200, 2400,4800, 9600 (the default), 19200, 38400, 57600. 9>. Multiple wireless rate Module supports multiple wireless speed, the user can be set according to the actual needs.To obtain an optimal balance point on the power, distance, speed. 10>. Parameters are saved, never crash ?After the user set parameters, the module will save the parameters, power is not lost,After re-power.Modules will be conducted in accordance with the parameters set after. ?Module with a built-in watchdog, and accurate time arrangement, once an exception occurs,the module will restart in 0.107 seconds, and can continue to work carried out in accordance with the previous parameter Settings. 3. performance parameters: Module Size:17*31mm interface method:1*5*2.54mm(can use universal board or Dupont Line) Power Supply:1.8V——3.6VDC Measured distance:1650m Communications levels:1.5VDD——4.0VDC Maximum power:20dBm(about 100mW) Gbps:1k,10k, 20kbps, can adjust .A total of 3. Emission current:78mA Sinks current: low of 35uA(According to the different wake time receiving current is different) Static Current:2.0uA(Use serial command into the ultra-low power consumption) Communication interface:UART serial,801,8N1,8E1 Transceiver length:Pass-through mode:256 bytes;Command Mode:56 bytes RSSI support: built-in Settings Working temps:-40°C~+85°C Working Humidity:10%—90% RH Storage Temp:-40°C~+125°C Operating frequency:145MHz-170.6MHz(100KHz step ) Receiving Sensitivity:-114dBm @ 1Kbps 4. Pin Definitions: 5. Circuit diagram: SHIPPING PAYMENT RETURNS FEEDBACK ABOUT US 1)All items will be shipped to your paypal address .Please update your latest address when you check out,and please make sure to provide us with correct,precise and detailed shipping address. 2)Most of the items will be shipped via Hongkong Airmail/Singapore Airmail .To US customers,we will send the package via E-packet . 3)All items will be shipped in 1-2 business days (excluding Sat,Sun & Holiday) after payment received and cleared. For the long-time holiday, we'll post the info on our store and reply you automatically via emails. 4)Tax:We will do our best to help you to clear the goods,and the tax depends on each country custom. 5)If you don't receive items over 30 business days,please make sure to contact us before leaving any neutral or negative feedbacks.We'll try our best to help you solve the problem. 6)The product in our store is free shipping. But the shipping method is different based on your order.If your order is more than $50 ,we will send the items to you with tracking number for free.If your order is less than $50,the registered mail fee is on your side. We could also deliver your item via EMS,DHL or Fedex based on your requirement. We Only Accept Paypal on Ebay. For specific requirements, please feel free to contact us. 1)If for some reason you're not satisfied with our service or product quality, please contact us within 3 days after you get the package, you can return the products to us in original package and we will refund your money after we get the package!(Shipping cost is NOT refundable and you should responsible for the return shipping) 2)Although we test each item and they are packed professionally, few item(less than 0.1%) might be damaged during the shipping. You are welcome to contact us within 3 days after you receive your package about replacement. 3)Repair Some items might be broken caused by improper use, we are always happy to offer any helpful repair service. Of course, you can send the broken items back to us and we will help you resolve the situation and charge reasonable repair fees. Feedback is important to all of us participating on the eBay community. We are always working hard for maintain high standards of excellence and strive for 100% customer satisfaction. So your POSITIVE FEEDBACK is very important. Here is an illustration showing how to leave the positive feedback, please follow the following step. Thank you so much. And welcome back to our store again. robothome is a leading company specializes in all kinds of IC products, such as electronic devices and components, development modules, development boards, consumptive materials and so on. robothome has gained thousands upon thousands of registered customers from all over the world. We offer world wide free shipping and have already shipped to more than 150 countries including United Sates, United Kingdom, Canada, Australia, France, Germany, Russia, Italy, New Zealand, Spain, Brazil, Japan, Singapore, Korean, etc. Here is a list of reasons for trusting robothome as your reliable source of IC products or business cooperator: 1.High Quality Products 2.Competitive Price 3.Excellent Research & Development team 4.Excellent shopping platform 5.Excellent Customer Experience 6.Excellent Team Work In robothome, we provide variety of IC products, sell them at the best price, and offer the best service.You will never regret to have robothome as your reliable IC item source, supplier, and business cooperators. Controller Robot Kits Sensor Servos/Motor&Driver Communication Module Power DIY LCD & LEDs On Aug-29-14 at 02:52:07 PDT, seller added the following information: inkFrog Analytics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Type	Does not apply
Material	Does not apply
Color	Does not apply
MPN	Does not apply
Brand	Unbranded
UPC	Does not apply
