12v 12ch Rf Wireless Remote Control Switch System / Transmitter And Receiver /rf

US $22.99

??, ???, China
Jan 29th

Open on mobile:
QR code

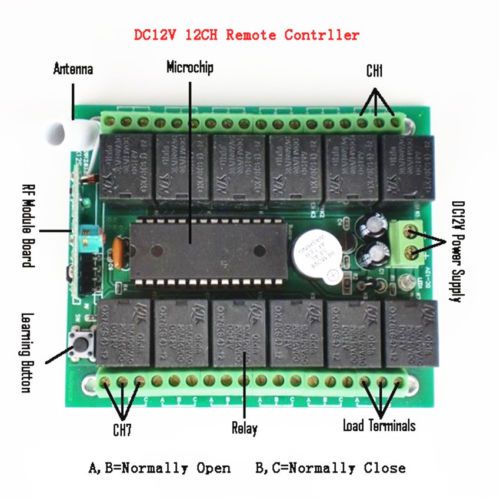

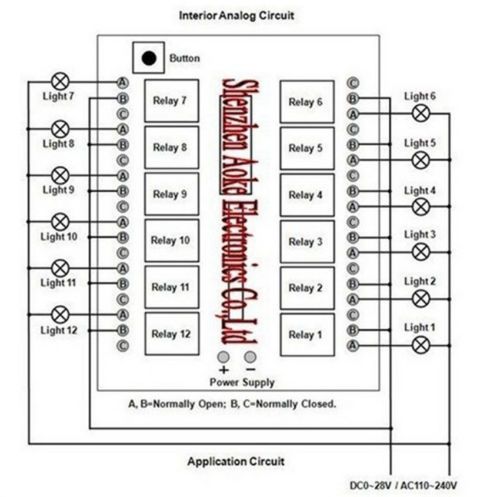

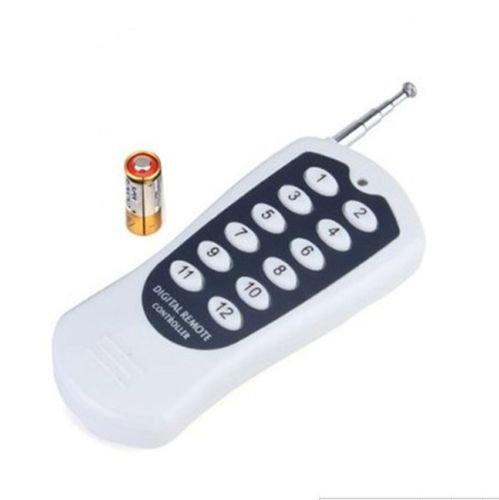

1PCS 12V 12CH RF Wireless Remote Control Switch system / Transmitter and Receiver /RF Item specifics is_customized:YesOperating Temperature:-30'C~+60'CBrand Name:AOKEMax. Voltage:DC12VMax. Current:10AModel Number:AK-RK12S-12+AK-12-12Working voltage:DC12±2VWorking current:10AWorking frequency:315MhzWorking mode:Momentary,Toggle,LatchReceiver sensitivity:-105dBReceiver channel:12 channelEncoding Type:Learning Code Add controller by Learning button on receiverPlace of Origin:Shenzhen,ChinaWarranty:2 years Product Description Main Function: Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances with voltage AC 110~240V or DC 0~28V. You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls, floors, and doors. Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code. One/several transmitters can control one/several receivers. If you use two or more receivers in same place, you can set them with different codes. Transmitting Frequency: 315MHz/433MHz. here is in set , we have make it work together ,so you don't have to care about what frequency are they ) Specification of receiver model:AK-RK12S-12 Channel: 12 CH channel output/working way : jog , inter-lock . self -lock (can be change on yourself ) Jog-----press one button is "ON" . loosen your finger on the same button is"OFF".need one channel switch and one buttons remote control ) Self -lock------ press one button for one time is "ON" .press the same button again is "OFF" .(need one channel switch and one buttons remote control Inter-lock ------- press one button is"ON",press another button is "OFF" . (need one channelswitch and 2 buttons remote control please note that : it is the control system in set here .you just can choose jog or self-lock working/output way here .for there are 12CH and 12buttons . Decode: Learning code (it can learn serveral remote control and the working way can sbe changed ) How to learn changed the output /working way Adjust output/working way A. jog/signal non-lock ——press the No.2 button to learn B.self-lock press the No.4 button to learn (each channel is independent .they won't interfere with each other C inter-lock ——press the No.1 button to learn (1-4button inter-lock. 5-8button interlock ,9-12button inter-lock ), D . self-lock and jog together,1-6 button is self-lock .7-12 button is jog .----press the No.8 button to learn Channel: 12buttons/keys Remote control distance: 1000m-3000M(ft) Encode: Fixed code, Soldering Size: 125mm x 49mm x 20mm Power Supply: 1 x 23A-12V battery (included) with the cover .waterproof ,dustproof . Power Supply (Operating Voltage): DC12V Relay: 10A/120VAC, 20A/14VDC Work Voltage Range of Relay: AC 110~240V or DC 0~28V Receiver Box Size: 100mm x 80mm x 30mm State current:
