100 Pcs/lot Ic Pic12f508-i/sn, 8-pin, 8-bit Flash Microcontroller

US $37.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

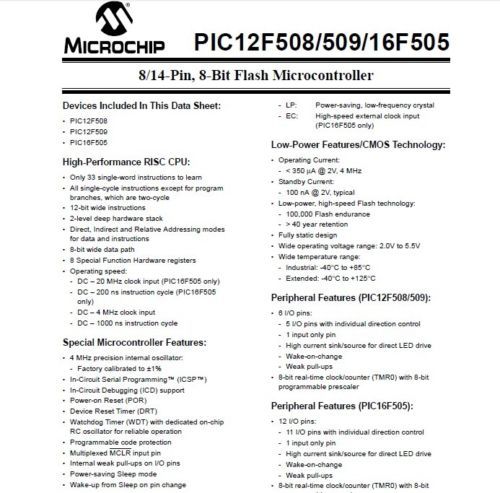

100 pcs/lot IC PIC12F508-I/SN Brand new Package: SOIC8_39MM ------------------------------------- High-Performance RISC CPU: • Only 33 single-word instructions to learn • All single-cycle instructions except for program branches, which are two-cycle • 12-bit wide instructions • 2-level deep hardware stack • Direct, Indirect and Relative Addressing modes for data and instructions • 8-bit wide data path • 8 Special Function Hardware registers • Operating speed: - DC – 20 MHz clock input (PIC16F505 only) - DC – 200 ns instruction cycle (PIC16F505 only) - DC – 4 MHz clock input - DC – 1000 ns instruction cycle Special Microcontroller Features: • 4 MHz precision internal oscillator: - Factory calibrated to ±1% • In-Circuit Serial Programming™ (ICSP™) • In-Circuit Debugging (ICD) support • Power-on Reset (POR) • Device Reset Timer (DRT) • Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation • Programmable code protection • Multiplexed MCLR input pin • Internal weak pull-ups on I/O pins • Power-saving Sleep mode • Wake-up from Sleep on pin change • Selectable oscillator options: - INTRC: 4 MHz precision Internal oscillator - EXTRC: External low-cost RC oscillator - XT: Standard crystal/resonator - HS: High-speed crystal/resonator (PIC16F505 only) - LP: Power-saving, low-frequency crystal - EC: High-speed external clock input (PIC16F505 only) Low-Power Features/CMOS Technology: • Operating Current: - < 350 ?A @ 2V, 4 MHz • Standby Current: - 100 nA @ 2V, typical • Low-power, high-speed Flash technology: - 100,000 Flash endurance - > 40 year retention • Fully static design • Wide operating voltage range: 2.0V to 5.5V • Wide temperature range: - Industrial: -40°C to +85°C - Extended: -40°C to +125°C Peripheral Features (PIC12F508/509): • 6 I/O pins: - 5 I/O pins with individual direction control - 1 input only pin - High current sink/source for direct LED drive - Wake-on-change - Weak pull-ups • 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler Peripheral Features (PIC16F505): • 12 I/O pins: - 11 I/O pins with individual direction control - 1 input only pin - High current sink/source for direct LED drive - Wake-on-change - Weak pull-ups • 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Microchip
MPN	PIC12F508-I/SN
Model	GoJGo.com-10137
