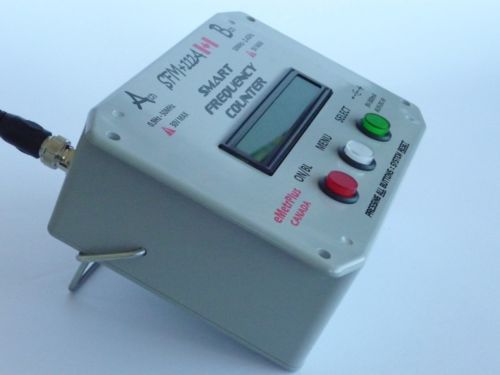

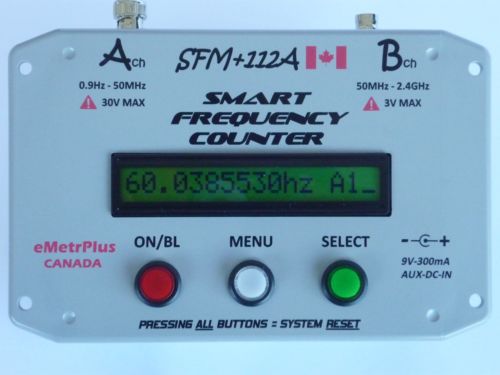

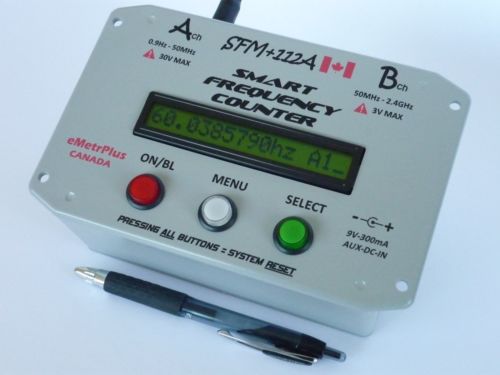

0.8999999hz To 2.4ghz+, Portable/bench, Emetrplus Sfm+112a Frequency Counter

US $108.60

  • Tsuen Wan, Hong Kong
  • Jan 29th
  //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////    Original SubVer: A7+ (ChanA: 70MHz+) //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////       eMetrPlus SFM+112A is a Universal Reciprocal Frequency Counter/Meter, and can display Equal High Precisions from LOWEST to HIGHEST of measurable frequencies. Frequency Range: 0.8999999Hz- (<0.9Hz) to 2.4000001GHz+ (typical >2.7GHz). At 50/60Hz (Mains Power Frequency) the Resolution is 1uHz (0.000001Hz), the Units Hz, KHz, MHz, GHz, S, mS, uS, nS etc. are also Directly Displayed. Ultra Stable 16.00000MHz TCXO, SFM+112A Basic Accuracy (0C to 45C): 0.5PPM + 1 Count. SFM+112A is a Dual Function PORTABLE/BENCH equipment and can be used without plugging into a Mains AC Outlet. The STN LCD Display is Ultra LARGE, SHARP & BRIGHT (Character Height >0.3inches with LED BackLight). The SFM+112A operates through an Extremely User Friendly MENU-Based Interface with 3 Front Buttons.   ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////   -------------------------------------------------------------------------------------------------------------------------------------------------------------- SPECIFICATIONS for eMetrPlus SFM+112A UNIVERSAL RECIPROCAL FREQUENCY COUNTER/METER --------------------------------------------------------------------------------------------------------------------------------------------------------------   Consistent 8 Digits Equal-Precision from Lowest to Highest of Measurable Frequencies [0.1uHz resolution at 1Hz, 0.1KHz resolution at 2GHz].   Frequency Range: ChA(Hi-Impedance): 0.8999999Hz- (<0.9Hz) to 70.000001MHz+ (>75MHz typical); ChB(50 Ohm): 49.999999MHz- (<50MHz) to 2.4000001GHz+ (>2.7GHz typical).   Ultra Stable 16.00000MHz TCXO Time Base, Accuracy/Tolerance MAX +/- 0.5PPM (-30C to +85C), Aging per Year MAX +/- 1.0PPM.   SFM+112A Readout Basic Accuracy = Time Base Accuracy (0.5PPM) + 1 count. Normal Operation Range: Temperature 0C to 45C, Humidity <95%. SFM+112A is Factory Calibrated at 25C. Recommended TCXO Warm-Up Time: 5mins (after powering up from OFF mode).   Portable/Bench equipment, uses Batteries [6 X AA: Alkaline or Pre-charged Re-chargeable] And/Or with 9V DC Adaptor (OPTIONAL) [(9V, 300mA - 800mA, Unregulated), DC plug type (5.5 x 2.1mm, Center Positive +)]. Battery Life (6 X AA, Alkaline) OPERATION Mode: >60Hr with 5Min BL (Backlight ON time).   Battery Life (6 X AA, Alkaline) OFF Mode (Shutdown/Sleep Mode): >1.5 Year.   LOW BATT Indication: “bat” shows on Right side of LCD Display on Alternate readout cycles when Last 10% of Battery Life is reached. Ultra LARGE, SHARP & BRIGHT LCD Display, Character Height >0.3 inches with Yellow/Green Backlight.   Backlight Function: Constant ON/OFF with DC Adaptor (OPTIONAL), ON with ~5+ Sec Timer with Battery Only. Number of LCD Contrast Settings: 12   Auto Ranging Input Channels: A, B via BNC Female Input Connectors. Attenuator Function [Input A Only]: X1(_) =NO Attenuation, X10(a) =Attenuate by 10.     Input Channel A: 0.9Hz to 70MHz+ (>75MHz typical), AC Coupling, Input Impedance: [(1Mohm || <30pF) at Attn= X1(_)], [(110Kohm || <30pF) at Attn= X10(a)]. Input A MAX Input Voltage (Continuous): 30Vrms. Input A Momentary (Accidental) MAX Input Voltage (Short Time, Low Frequency): 350Vrms (<30Sec, <600Hz). Selection A1: Low Pass Filter engaging; normal operation [0.9Hz to 900Hz, Sensitivity ~100mVrms]; extended operation [0.9Hz ~ 9KHz]. Selection A2: Middle Pass Filter engaging; normal operation [900Hz to 1MHz, Sensitivity <30mVrms]; extended operation [0.9Hz ~ 9MHz].   Selection A3: High Pass Filter engaging; normal operation [(1MHz to 65MHz, Sensitivity <15mVrms), (65MHz to 70MHz, Sensitivity <50mVrms)]; extended operation [90KHz ~ 75MHz].       Input Channel B: 50MHz to 2.4GHz+ (>2.7GHz typical), AC Coupling, Input Impedance: 50ohm; extended operation [9MHz ~ 2.7GHz].  Input B MAX Input Voltage (Continuous): 3Vrms. Sensitivity: [(50MHz to 1.2GHz) <15mVrms, (1.2GHz to 2.4GHz) <45mVrms].     Readout Mode: FREQUENCY in Hz, KHz, MHz, GHz; PERIOD in S, mS, uS, nS.   Sampling Time: 0.1Sec, 0.5Sec, 1Sec, 5Sec, 10Sec. Data Hold Function: Long Press MENU Button or Long Press SELECT Button.   System Reset Function: Pressing ALL 3 Buttons simultaneously will SYSTEM RESET the SFM+112A.   ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////   ---------------------------------------------------------------------------------------------------------------- GUIDELINES/TIPS in using eMetrPlus SFM+112A Universal Frequency Counter/Meter ----------------------------------------------------------------------------------------------------------------   Selection A1 is engaging an Input Low Pass Filter and Selection A2 is engaging an Input Middle Pass Filter, while Selection A3 is engaging an Input High Pass Filter. For an input signal of say 1.1 KHz, selecting A1 means more input High Frequency noise Filtering than selecting A2 and vice versa.   For an input signal of say 900 KHz, selecting A3 means Filtering Out more input Low Frequency contents than selecting A2 and vice versa. 9V DC Adaptor (OPTIONAL) does NOT recharge Battery, and Battery power is NOT consumed when both DC Adaptor (OPTIONAL) & Battery are both applied.   After installing 6 X AA Batteries, Rotate the batteries in the battery holder Slightly to ensure good electrical contacts.   Pressing All 3 Buttons will System Reset the SFM+112A, and will Reset All Selections to Default values.     ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////   -----------------------------------------------------------------------------      3 BUTTON MENU FUNCTION TABLE for eMetrPlus SFM+112A ----------------------------------------------------------------------------- --------------------------------------------------------------------------------------------                                                                                                                                                                 ON/BL             MENU             SELECT                                    --------            --------            Button             Button             Button -------------------------------------------------------------------------------------------- LONG               in DATA                                  HOLD               HOLD PRESS              Readout        ON/OFF           Readout          Readout -------------------------------------------------------------------------------------------- LONG               in MENU                                 NO                   NO PRESS             Display           ON/OFF           Function          Function -------------------------------------------------------------------------------------------- SHORT             in DATA                                  1ST                  CURRENT PRESS             Readout         BackLight        Menu               Mode -------------------------------------------------------------------------------------------- SHORT            in MENU                                  NEXT               NEXT PRESS             Display           BackLight        Menu               Mode -------------------------------------------------------------------------------------------- ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////   ------------------------------------------------------------ SPEC for 1601 LARGE CHARACTER LCD MODULE RC1601C ------------------------------------------------------------   Large Character Dot-Matrix LCD Display with Yellow/Green LED Backlight. 16 Characters x 1 Line.   LCD type: Yellow Green, STN Positive, Transflective, 1/16 Duty.   View direction: 6 o'clock. Module dimension: 122.0 x 33.0 x 13.5 (max) mm3.   Active Display Area: 94.84 x 9.66 mm2.   //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// This product and other eMetrPlus products are 100% Designed in Canada and are built using components of the Highest Quality. //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// Please note the Graphics Printouts/Markings on the production units may be slightly different from those in the Pictures. //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////       FEEDBACK         by                  BUYER                                               Date                 Product          "SUPER"                                           vladimirrakamaric (201  Blue Star)       Oct-24-2013        SFM+112A; SubVer: b+          "Good price Fast shipping"        6877ronald             (365  Blue Star)       Mar-02-2014        SFM+112A; SubVer: b+   //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// Shipping is by HONGKONG SPEEDPOST With Tracking Number. HONGKONG SPEEDPOST Tracking-Web-Site: http://www.speedpost.hk/speedpost/index.jsf EXPRESS SHIPPING by UPS is also available for World-Wide-Delivery for ALL COUNTRIES. Please Contact for Exact Cost. For our Listed Excluded Locations, please use this UPS shipping option. For USA & International Buyers, please note Import Taxes & Duties of your country may be applicable.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand eMetrPlus (Canada)
MPN SFM+112A
Model SFM+112A, SubVer: A7+
Country/Region of Manufacture Hong Kong
